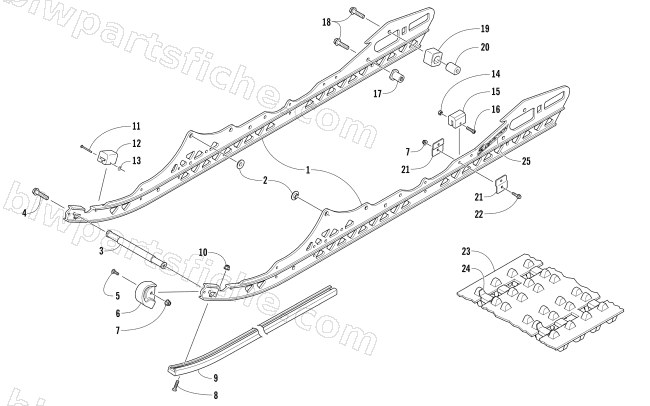

2017 Arctic Cat BEARCAT 3000 LT EARLY BUILD — SLIDE RAIL AND TRACK ASSEMBLY
2017 BEARCAT 3000 LT EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-685 | RAIL,SUSP-146"-TOUR-MACH | 1 | $238.95 | |
| 2 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 3 | 3604-679 | AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP | 1 | $74.95 | |
| 4 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 5 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 6 | 4604-093 | NOSEPIECE,RAIL-28.45mm WIDE | 1 | $6.75 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 9 | 3604-801 | WEARSTRIP,SLIDE RAIL-1392MM | 1 | $29.95 | |
| 10 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 11 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 12 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 13 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 14 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 15 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 16 | 8470-540 | SCREW,MACH-TSPNH M5X0.8X40 CL8.8 Z&Y | 1 | $1.37 | |
| 17 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 18 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 19 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 20 | 3604-291 | BUSHING,REAR ARM COUPLER-M10 | 1 | $12.35 | |
| 22 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 2602-933 | TRACK,COBRA-15X146X1.35-2.86P | 1 | $1,477.95 | |
| 24 | 2602-386 | CLIP,GUIDE | 1 | $3.57 | |
| 25 | 0621-907 | DECAL,SLIDE RAIL | 1 | $5.51 |
