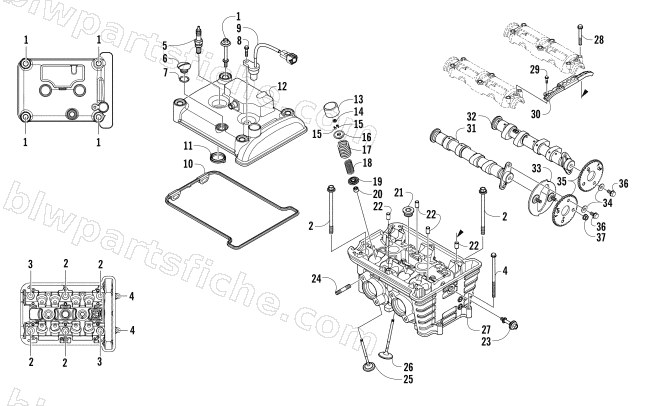

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY
2017 BEARCAT 3000 LT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-983 | BOLT ASSY HEAD COVER | 1 | $10.97 | |
| 2 | 3306-981 | BOLT WASHER 10*160 | 1 | $10.97 | |
| 3 | 3306-982 | BOLT WASHER 10*170 | 1 | $10.97 | |
| 4 | 3306-988 | BOLT FLANGE 6*120 | 1 | $5.51 | |
| 5 | 0217-813 | SPARK PLUG,CR8EB | 1 | $12.35 | |
| 6 | 3304-012 | CAP ACG A.C.G. | 1 | $3.30 | |
| 7 | 3304-099 | O-RING 13.8*2.5 | 1 | $2.33 | |
| 8 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 9 | 3306-821 | SENSOR,CAM-TIMING (ZK) | 1 | $102.95 | |
| 10 | 3306-930 | SEAL HEAD COVER | 1 | $64.95 | |
| 12 | 3306-978 | COVER ASSY HEAD | 1 | $156.95 | |
| 13 | 3306-938 | LIFTER VALVE | 1 | $37.95 | |
| 14 | 3306-942 | SHIM T=1.80 | 1 | $5.09 | |
| 14 | 3306-943 | SHIM T=1.85 | 1 | $5.09 | |
| 14 | 3306-944 | SHIM T=1.90 | 1 | $5.09 | |
| 14 | 3306-945 | SHIM T=1.95 | 1 | $5.09 | |
| 14 | 3306-946 | SHIM T=2.00 | 1 | $5.09 | |
| 14 | 3306-947 | SHIM T=2.05 | 1 | $5.09 | |
| 14 | 3306-948 | SHIM T=2.10 | 1 | $5.09 | |
| 14 | 3306-949 | SHIM T=2.15 | 1 | $5.09 | |
| 14 | 3306-950 | SHIM T=2.20 | 1 | $6.83 | |
| 14 | 3306-951 | SHIM T=2.25 | 1 | $5.09 | |
| 14 | 3306-952 | SHIM T=2.30 | 1 | $5.09 | |
| 14 | 3306-953 | SHIM T=2.35 | 1 | $5.09 | |
| 14 | 3306-954 | SHIM T=2.40 | 1 | $5.09 | |
| 14 | 3306-955 | SHIM T=2.45 | 1 | $5.51 | |
| 14 | 3306-956 | SHIM T=2.50 | 1 | $5.09 | |
| 14 | 3306-957 | SHIM T=2.55 | 1 | $5.51 | |
| 14 | 3306-958 | SHIM T=2.60 | 1 | $5.51 | |
| 14 | 3306-959 | SHIM T=2.65 | 1 | $5.09 | |
| 14 | 3306-960 | SHIM T=2.70 | 1 | $5.09 | |
| 14 | 3306-961 | SHIM T=2.75 | 1 | $5.09 | |
| 14 | 3306-962 | SHIM T=2.80 | 1 | $5.09 | |
| 14 | 3306-963 | SHIM T=2.85 | 1 | $5.09 | |
| 14 | 3306-964 | SHIM T=2.90 | 1 | $5.09 | |
| 14 | 3306-965 | SHIM T=2.95 | 1 | $5.09 | |
| 14 | 3306-966 | SHIM T=3.00 | 1 | $5.09 | |
| 15 | 3306-980 | COTTER VALVE | 1 | $10.97 | |
| 16 | 3306-941 | RETAINER VALVE SPRING | 1 | $12.35 | |
| 17 | 3306-939 | SPG VALVE OUTER | 1 | $17.87 | |
| 18 | 3306-940 | SPG VALVE INNER | 1 | $6.34 | |
| 19 | 3306-979 | SEAT VALVE SPG | 1 | $2.61 | |
| 20 | 3306-968 | SEAL VALVE STEM | 1 | $12.35 | |
| 21 | 3306-986 | BOLT SEALING 18MM | 1 | $10.97 | |
| 22 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 23 | 3306-984 | BOLT ASSY HEAD COVER | 1 | $6.34 | |
| 24 | 3306-987 | BOLT STUD 6*35 | 1 | $5.51 | |
| 25 | 3306-937 | VALVE EXHAUST | 1 | $64.95 | |
| 26 | 3306-936 | VALVE INLET | 1 | $33.95 | |
| 27 | 3306-928 | HEAD ASSY CYLINDER | 1 | $848.95 | |
| 28 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 | |
| 29 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 30 | 3306-935 | GUIDE UPPER TENSIONER | 1 | $20.63 | |
| 31 | 3306-932 | SHAFT EX CAM | 1 | $324.95 | |
| 32 | 3306-931 | SHAFT IN CAM | 1 | $324.95 | |
| 33 | 3306-934 | ENCODER PLATE PHASE | 1 | $6.89 | |
| 34 | 0828-083 | WASHER,STEEL,6X14X0.9 | 1 | $0.81 | |
| 35 | 3306-933 | SPROCKET CAM SHAFT | 1 | $26.95 | |
| 36 | 3306-985 | BOLT KNOCK 6MM | 1 | $16.49 | |
| 37 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 |
