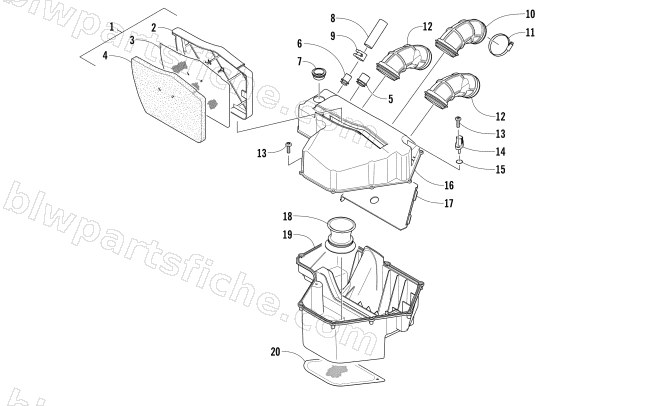

AIR INTAKE ASSEMBLY
2017 BEARCAT 7000 XT EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-086 | FILTER,AIR-ASSY | 1 | $65.95 | |
| 5 | 2670-433 | RETAINER, HOSE-19mm ID | 1 | $2.19 | |
| 6 | 2670-432 | RETAINER, HOSE-13mm ID | 1 | $2.06 | |
| 7 | 2670-469 | GROMMET,AIRBOX-24MM ID | 1 | $3.16 | |
| 8 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 9 | 1623-966 | CLAMP,HOSE - #CTL-8 | 1 | $2.06 | |
| 10 | 2670-279 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 11 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 12 | 2670-402 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 13 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 14 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 15 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 16 | 2670-400 | SILENCER,AIR-UPPER | 1 | $54.95 | |
| 17 | 2670-401 | BAFFLE,INTAKE | 1 | $20.63 | |
| 18 | 2670-448 | STACK,FLOW-XT | 1 | $27.95 | |
| 19 | 2670-399 | SILENCER,AIR-LOWER | 1 | $60.95 |
