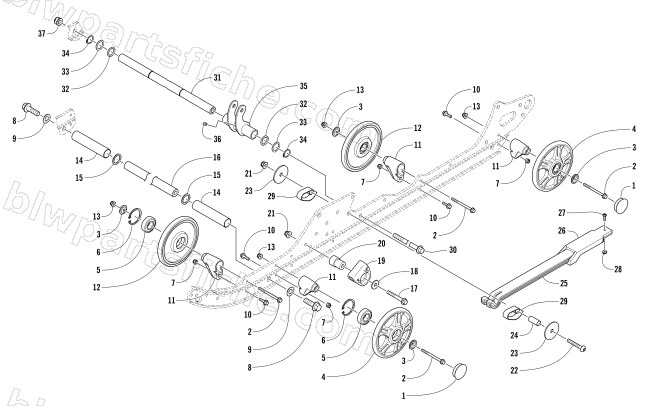

IDLER WHEEL ASSEMBLY
2017 BEARCAT 7000 XT EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 2 | 8413-675 | SCREW,CAP-HFH M6X1.0X75 CL10.9 SILV | 1 | $3.16 | |
| 3 | 2623-025 | WASHER,STEPPED-6mm ID X 26mm OD-MZ&B | 1 | $1.37 | |
| 4 | 3604-299 | WHEEL,IDL-5.63 W.787"ID WHITE | 1 | $53.95 | |
| 5 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 6 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 7 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 8 | 8413-241 | SCREW,CAP-HFH M12X1.25X40 CL10.9W/2353 | 1 | $8.54 | |
| 9 | 0623-525 | WASHER, FLAT-.5 X 1.01 OD HARDENED | 1 | $7.72 | |
| 10 | 8413-620 | SCREW,CAP-HFH M6X1.0X20 CL10.9 SILV | 1 | $0.95 | |
| 11 | 3604-899 | BLOCK,MTG-IDLER WHEEL-TALL (MAG) | 1 | $8.21 | |
| 12 | 3604-807 | WHEEL,IDL-5.63 W.787"ID-BLK (NO SPK) | 1 | $53.95 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 15 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 17 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 18 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 19 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 20 | 4604-105 | BLOCK,SLIDE-SPRING-PM-38.5mm | 1 | $10.97 | |
| 21 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 23 | 0623-746 | WASHER,2.00X.386X.1046 | 1 | $2.06 | |
| 24 | 0604-739 | BUSHING,OVERLOAD | 1 | $4.26 | |
| 25 | 1704-279 | R/B 3704-276 | 1 | $125.95 | |
| 26 | 2604-788 | BLOCK,WEAR-SPRING SLIDE - .19 HOLE | 1 | $24.77 | |
| 27 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 28 | 8041-276 | NUT,HEX THIN LOCK-NYL 10-32 Z&Y | 1 | $0.26 | |
| 29 | 1604-412 | CLIP,RETAINING H.D.-SLOTTED | 1 | $44.95 | |
| 30 | 2623-078 | SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI | 1 | $24.77 | |
| 33 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 | |
| 35 | 1704-674 | PIVOT, REAR SHOCK-FABR | 1 | $42.95 | |
| 36 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 |
