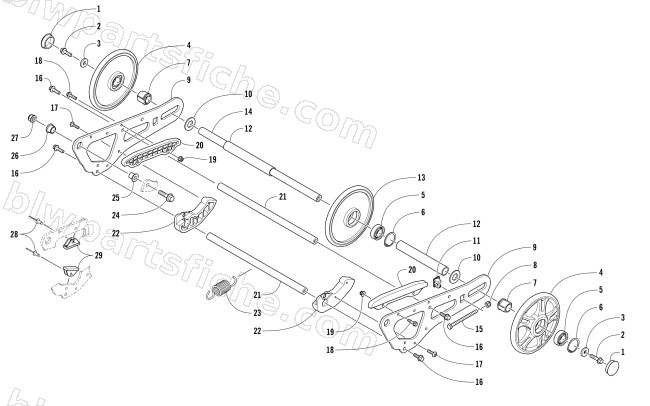

2017 Arctic Cat BEARCAT 7000 XT GROOMER SPECIAL — ARTICULATING SKID FRAME ASSEMBLY
2017 BEARCAT 7000 XT GROOMER SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 2 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 3 | 1623-931 | WASHER,FLAT-ALUM-M10X29 | 1 | $1.50 | |
| 4 | 3604-298 | WHEEL,IDL-7.12 W.787"ID WHITE | 1 | $53.95 | |
| 5 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 6 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 7 | 3604-934 | SPACER,REAR WHEEL-OUTER | 1 | $6.75 | |
| 8 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 10 | 0623-921 | WSHR, FLAT.788ID X 1.50OD X .109 | 1 | $1.64 | |
| 11 | 3604-647 | ADJUSTER,TRACK-8mm-CAST | 1 | $3.71 | |
| 12 | 3604-931 | SPACER,REAR WHEEL-176.9 | 1 | $17.87 | |
| 13 | 3604-060 | WHEEL,IDL-7.12 W.787"ID BLK(NO SPOKE) | 1 | $53.95 | |
| 15 | 1623-682 | SCREW,CAP-HH-M8 X 1.25 X 100 Z&Y | 1 | $1.78 | |
| 16 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 17 | 1623-618 | SCREW,PT THD-TSPNH K60-2.69X25MM RIE BLK | 1 | $6.06 | |
| 18 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 4604-095 | GUARD,SWING ARM | 1 | $16.49 | |
| 21 | 3604-675 | CROSSBRACE,SWING ARM | 1 | $34.95 | |
| 22 | 4604-098 | GUARD,SWING ARM-LOWER-RH | 1 | $16.49 | |
| 22 | 4604-099 | GUARD,SWING ARM-LOWER-LH | 1 | $16.49 | |
| 24 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 25 | 3604-935 | AXLE,FLANGED-SWING ARM | 1 | $2.88 | |
| 28 | 8060-808 | RIVET,BLIND-DH AA86 PL | 1 | $1.37 | |
| 29 | 3604-981 | STOP,REAR ARM | 1 | $19.25 |
