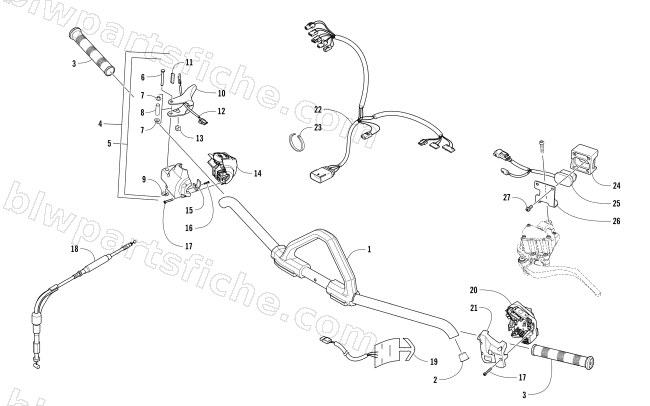

HANDLEBAR AND CONTROLS
2017 BEARCAT 7000 XT GROOMER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0609-882 | CONTROL,THROTTLE-R/H-REAR (34MM) | 1 | $105.95 | |
| 5 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 9 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 10 | 0609-795 | LEVER, THROTTLE-34MM | 1 | $46.95 | |
| 11 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 12 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 13 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 14 | 0609-818 | CONTROL, R/H-FRONT-08 4 STROKE | 1 | $79.95 | |
| 15 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 16 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 17 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 18 | 0687-235 | CABLE,THROTTLE | 1 | $57.95 | |
| 19 | 0609-948 | ELEMENT,HW-RH H/L | 1 | $89.95 | |
| 19 | 0609-949 | ELEMENT,HW-LH H/L | 1 | $89.95 | |
| 20 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 21 | 0609-883 | CONTROL,L/H-REAR | 1 | $13.73 | |
| 22 | 1686-637 | HARNESS,HANDLEBAR-4 STRK | 1 | $126.95 | |
| 23 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 23 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 0409-087 | SWITCH,WINCH-HARNESS ASSY | 1 | $54.95 |
