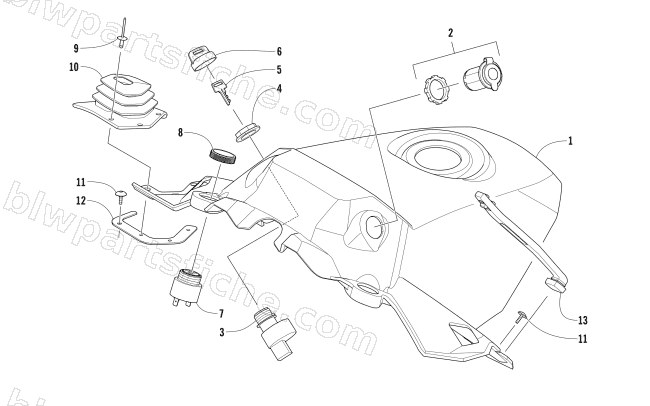

CONSOLE ASSEMBLY
2017 BEARCAT 7000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-744 | CONSOLE,MOLD BLUE | 1 | $192.95 | |
| 2 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 3 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 4 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 5 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 5 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 6 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 7 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 8 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 9 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 11 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 12 | 6606-989 | PLATE,SUPPORT-SHIFT BOOT | 1 | $3.99 | |
| 13 | 6606-852 | STRAP,HOLDDOWN-HOOD | 1 | $19.25 | |
| 14 | 6606-390 | NUT,RETAINING-CONSOLE | 1 | $2.06 |
