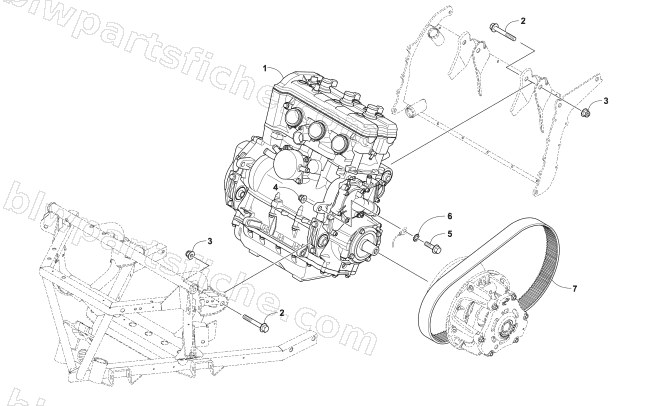

2017 Arctic Cat BEARCAT 7000 XT — ENGINE AND RELATED PARTS
2017 BEARCAT 7000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8413-275 | SCREW,CAP-HFH M12X1.25X75 CL10.9 SILV | 1 | $3.99 | |
| 3 | 8427-202 | NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z&Y | 1 | $1.23 | |
| 4 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 8408-030 | SCREW,CAP-HFH M10X1.25X30 CL8.8 Z&Y | 1 | $1.78 | |
| 6 | 8053-272 | WASHER,LOCK-3/8 EXT TOOTH TYP A Z&Y | 1 | $0.26 | |
| 7 | 0627-102 | BELT,DRIVE-S6C-S1.448"WX45.570"OC-DC-PBO | 1 | $235.95 |
