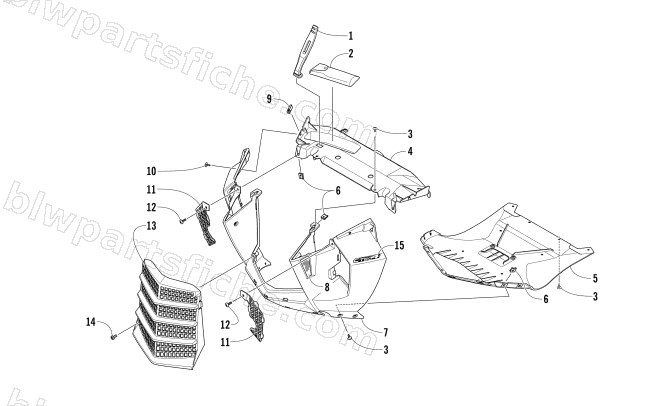

FRONT FASCIA AND CENTER SKID PLATE ASSEMBLY
2017 BEARCAT 7000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-852 | STRAP,HOLDDOWN-HOOD | 1 | $19.25 | |
| 2 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 4 | 0613-174 | BRKT,MOUNTING-RADIATOR-UPPER | 1 | $38.95 | |
| 6 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 8 | 1621-390 | DECAL,REFLECTOR-AMBER-RH | 1 | $24.77 | |
| 8 | 1621-391 | DECAL,REFLECTOR-AMBER-LH | 1 | $24.77 | |
| 9 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 10 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 11 | 6606-854 | CLOSE OFF,FRONT BUMPER-RH-BLK | 1 | $48.95 | |
| 11 | 6606-855 | CLOSE OFF,FRONT BUMPER-LH-BLK | 1 | $48.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 6606-790 | GRILLE,RADIATOR-MOLD BLK | 1 | $33.95 | |
| 14 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
