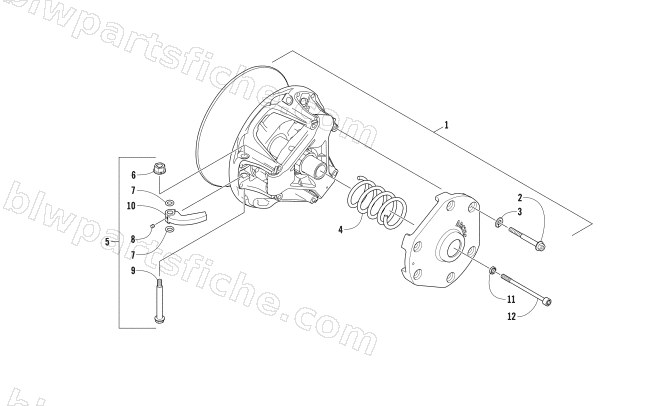

DRIVE CLUTCH
2017 LYNX 2000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 2 | 0646-431 | SCREW,CAP-FH SHOULDER | 1 | $1.92 | |
| 3 | 0646-430 | WASHER,SPR LOCK-M8 | 1 | $0.40 | |
| 4 | 0646-433 | SPRING,CLUTCH-GOLD STRIPE-75/275 LB | 1 | $53.95 | |
| 5 | 4639-674 | KIT,CAM ARM REPAIR '05-'09(WIDE) | 1 | $58.95 | |
| 6 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 7 | 1602-692 | O-RING, 5/16 X 1/2 X 3/32 - VITON | 1 | $0.68 | |
| 8 | 1623-183 | SCREW,SET-CUP PT W/THD LOC-8-32X3/16 | 1 | $1.64 | |
| 9 | 0646-747 | PIN, CAM ARM | 1 | $17.87 | |
| 10 | 0646-716 | R/B 0746-716 | 1 | $13.73 | |
| 11 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 12 | 1623-792 | BOLT,CLUTCH-M12X1.25X157 | 1 | $26.95 |
