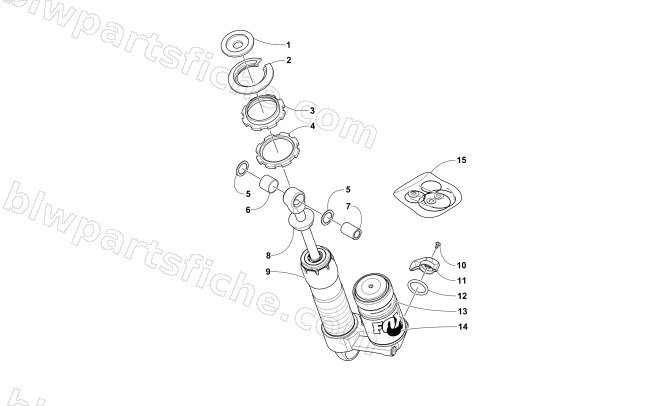

2017 Arctic Cat M 8000 HCR 153 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2017 M 8000 HCR 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 4 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 6 | 4604-223 | AXLE,EYELET-.315ID X .621 OD X .950 TL | 1 | $29.95 | |
| 7 | 3603-399 | BUSHING,EYELET-.403 ID X .621 OD X .740 | 1 | $35.95 | |
| 8 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 9 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 10 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 13 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 |
