Home Snowmobile 2017 M 8000 HCR 153 SEAT ASSEMBLY

SEAT ASSEMBLY

2017 M 8000 HCR 153

Scroll / pinch to zoom · drag to pan · double-click resets

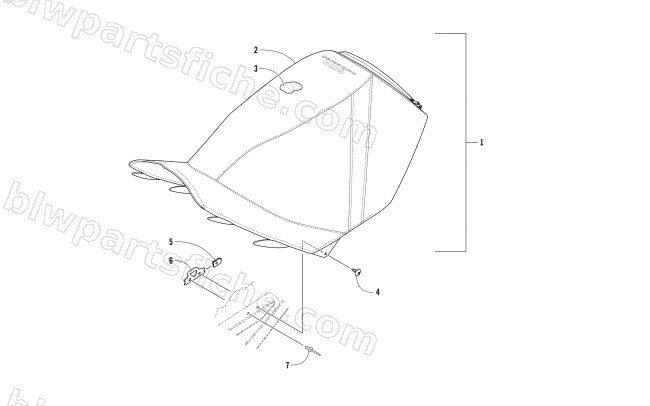

SEAT ASSEMBLY diagram
# Part No. Description Qty Price
3 0717-213 FOAM,SEAT-MTN (.48 RATIO @ 2.7 75-80ILD) 1 $164.95
5 1623-052 NUT,U 1 $0.95
6 6606-704 PLATE,RETAINER-SEAT 1 $2.47
7 8060-682 RIVET,BLIND-DH SS62 ZINC 1 $0.12
