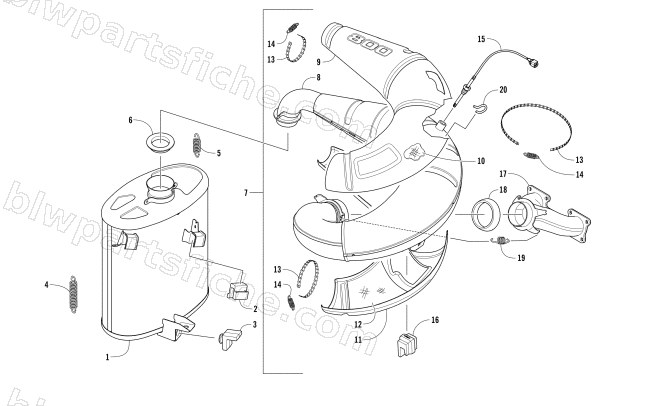

EXHAUST ASSEMBLY
2017 M 8000 LTD ES 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2612-893 | GROMMET,RUBBER-UPR | 1 | $17.87 | |
| 3 | 2612-706 | GROMMET,RUBBER-LOWER | 1 | $5.65 | |
| 4 | 2612-949 | SPRING,EXHAUST-2.70" | 1 | $5.51 | |
| 5 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 6 | 1612-619 | GASKET,EXHAUST-TAIL PIPE (03 900) | 1 | $26.95 | |
| 13 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 13 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 14 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 15 | 0630-330 | SENSOR,EXHAUST TEMP-M14 X 1.5 | 1 | $213.95 | |
| 16 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 17 | 1712-559 | MANIFOLD,EXHAUST-MACH | 1 | $174.95 | |
| 18 | 2612-059 | GASKET, EXHAUST - HEADPIPE | 1 | $30.95 |
