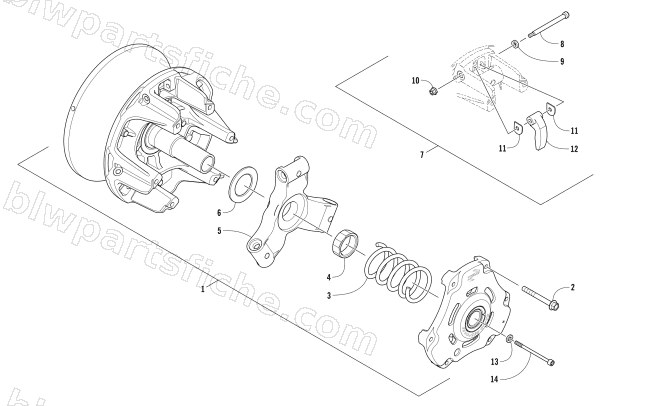

2017 Arctic Cat M 8000 SNO PRO 153 — DRIVE CLUTCH
2017 M 8000 SNO PRO 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0646-877 | SPRING,DRIVE-105/255 LB | 1 | $106.95 | |
| 8 | 0823-396 | SCREW,SHOULDER-HEX SKT .25X2.5 | 1 | $12.35 | |
| 9 | 2623-091 | WASHER, FLAT .500 X .250 X .130 NYLON | 1 | $5.65 | |
| 10 | 0823-399 | NUT,LOCK HEX #10-24 FLEXLOCK | 1 | $9.59 | |
| 11 | 0646-880 | WASHER,FLYWEIGHT THRUST .252X.830X.050 | 1 | $20.63 | |
| 13 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 |
