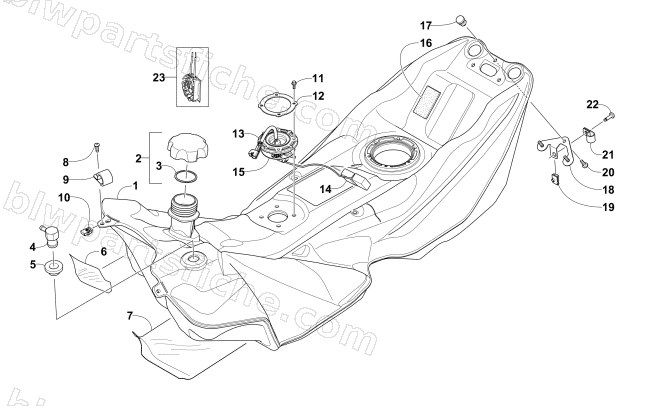

GAS TANK ASSEMBLY
2017 PANTERA 7000 LTD EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-083 | TANK,FUEL-TOUR LXR-S/P ASSY | 1 | $444.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 2670-423 | FITTING,ELBOW-VENT-5/16 | 1 | $45.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 2670-451 | R/B 3612-316 | 1 | $13.95 | |
| 7 | 2670-434 | R/B 3612-315 | 1 | $13.95 | |
| 8 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 9 | 2623-006 | CLAMP,CABLE-.625 INSUL-.03 MTG | 1 | $2.19 | |
| 10 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 11 | 8408-517 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y W/2353 | 1 | $2.75 | |
| 12 | 2670-431 | RETAINER,FLANGE-LSA | 1 | $27.95 | |
| 13 | 2670-386 | SENDER, FUEL LEVEL | 1 | $208.95 | |
| 14 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 15 | 2623-035 | O-RING,46.9 ID X 5.3mm WIDE - 2-328 | 1 | $6.75 | |
| 16 | 0645-760 | PAD,BATTERY | 1 | $3.99 | |
| 17 | 1623-998 | LATCH, SEAT-M6 | 1 | $19.25 | |
| 18 | 5706-922 | BRKT,MTG-SEAT LATCH-ASSY | 1 | $12.35 | |
| 19 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 20 | 8468-621 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/2353 | 1 | $1.09 | |
| 21 | 2623-083 | CLAMP,WIRE-.500IN-VINYL COATED | 1 | $1.50 | |
| 22 | 2623-059 | SCREW,MACH-TSPNH M6X1X16 MPT Z&Y-W/2353 | 1 | $1.78 |
