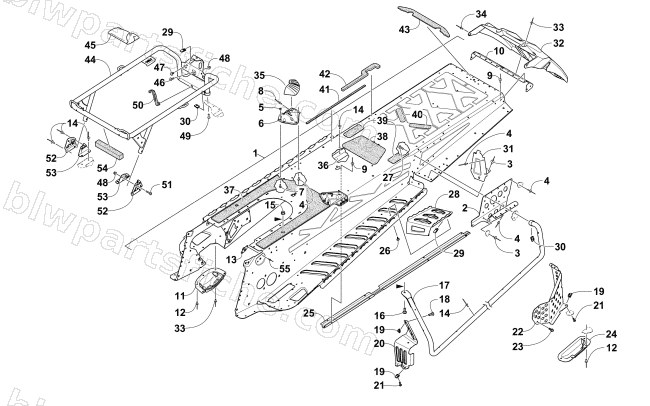

TUNNEL AND REAR RACK ASSEMBLY
2017 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2707-451 | CHASSIS-TOUR-ASSY-PTD BLK | 1 | $2,312.95 | |
| 1 | 2707-634 | CHASSIS,TOUR-PTD BLK | 1 | $2,312.95 | |
| 2 | 2707-090 | BRKT,MTG-REAR SUSP-RH-PTD BLK | 1 | $43.95 | |
| 2 | 2707-091 | BRKT,MTG-REAR SUSP-LH-PTD BLK | 1 | $43.95 | |
| 3 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 4 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 5 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 6 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 6 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 7 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 8 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 9 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 10 | 2707-633 | END CAP,TUNNEL-PTD BLK | 1 | $39.95 | |
| 11 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 14 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 15 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 17 | 1707-602 | ROLL,TUNNEL-RH-PTD BLK | 1 | $203.95 | |
| 17 | 1707-603 | ROLL,TUNNEL-LH-PTD BLK | 1 | $203.95 | |
| 18 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 20 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 21 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 22 | 1707-955 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $37.95 | |
| 23 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 24 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 25 | 0630-301 | PROTECTOR,TAILLIGHT HARNESS-TOUR | 1 | $43.95 | |
| 27 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 28 | 1707-878 | FOOTREST,PASSENGER-RH-PTD BLK | 1 | $49.95 | |
| 28 | 1707-879 | FOOTREST,PASSENGER-LH-PTD BLK | 1 | $49.95 | |
| 29 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 30 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 31 | 2707-636 | CLOSE OFF,RUNNING BOARD-RH-PTD BLK | 1 | $45.95 | |
| 31 | 2707-637 | CLOSE OFF,RUNNING BOARD-LH-PTD BLK | 1 | $45.95 | |
| 32 | 6606-486 | FLAP,SNOW-BLK | 1 | $33.95 | |
| 33 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 34 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 35 | 6606-664 | MOUNT,FUEL TANK-RUBBER-RH | 1 | $17.87 | |
| 35 | 6606-665 | MOUNT,FUEL TANK-RUBBER-LH | 1 | $17.87 | |
| 37 | 0617-750 | SEAL,FOAM-FUEL TANK-FRONT | 1 | $34.95 | |
| 38 | 6606-935 | PAD,TUNNEL-FUEL TANK | 1 | $30.95 | |
| 39 | 6606-877 | PAD,RUBBER-45 X 110 X 1.6 | 1 | $2.88 | |
| 40 | 6606-878 | PAD,RUBBER-25 X 110 X 1.6 | 1 | $16.49 | |
| 41 | 0617-743 | SEAL,FOAM-.187X.375X18.1 | 1 | $5.37 | |
| 42 | 0617-748 | SEAL,FOAM-RACK BRKT-RH | 1 | $17.87 | |
| 42 | 0617-749 | SEAL,FOAM-RACK BRKT-LH | 1 | $17.87 | |
| 43 | 0617-744 | SEAL,FOAM-REAR FACIA | 1 | $10.97 | |
| 44 | 5706-635 | RACK,REAR-PTD BLK | 1 | $526.95 | |
| 45 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 46 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 47 | 2623-017 | SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW | 1 | $1.37 | |
| 48 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 49 | 2623-059 | SCREW,MACH-TSPNH M6X1X16 MPT Z&Y-W/2353 | 1 | $1.78 | |
| 50 | 6606-392 | STRAP,HOLD-DOWN-RUBBER | 1 | $2.88 | |
| 51 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 52 | 5706-450 | BRKT,MOUNTING-RACK-OUTER RH-PTD BLK | 1 | $39.95 | |
| 52 | 5706-451 | BRKT,MOUNTING-RACK-OUTER LH-PTD BLK | 1 | $39.95 | |
| 53 | 5706-448 | BRKT,MOUNTING-RACK-INNER-RH-PTD BLK | 1 | $39.95 | |
| 53 | 5706-449 | BRKT,MOUNTING-RACK-INNER-LH-PTD BLK | 1 | $39.95 | |
| 54 | 0617-745 | SEAL,FOAM-1X1X6.9 | 1 | $13.73 | |
| 55 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 |
