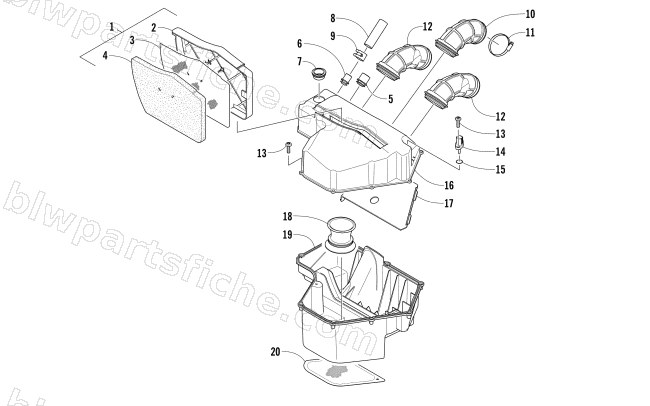

2017 Arctic Cat PANTERA 7000 XT LTD EARLY BUILD — AIR INTAKE ASSEMBLY
2017 PANTERA 7000 XT LTD EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-086 | FILTER,AIR-ASSY | 1 | $65.95 | |
| 5 | 2670-433 | RETAINER, HOSE-19mm ID | 1 | $2.19 | |
| 6 | 2670-432 | RETAINER, HOSE-13mm ID | 1 | $2.06 | |
| 7 | 2670-469 | GROMMET,AIRBOX-24MM ID | 1 | $3.16 | |
| 8 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 9 | 1623-966 | CLAMP,HOSE - #CTL-8 | 1 | $2.06 | |
| 10 | 2670-279 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 11 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 12 | 2670-402 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 13 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 14 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 15 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 16 | 2670-400 | SILENCER,AIR-UPPER | 1 | $54.95 | |
| 17 | 2670-401 | BAFFLE,INTAKE | 1 | $20.63 | |
| 18 | 2670-448 | STACK,FLOW-XT | 1 | $27.95 | |
| 19 | 2670-399 | SILENCER,AIR-LOWER | 1 | $60.95 |
