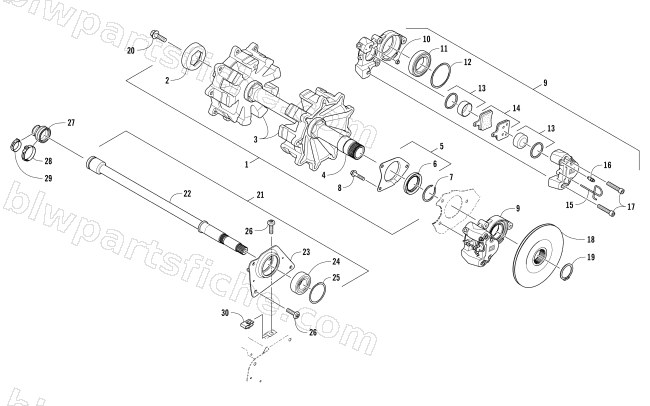

2017 Arctic Cat PANTERA 7000 XT LTD EARLY BUILD — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2017 PANTERA 7000 XT LTD EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1602-984 | SEAL,SLINGER-TRACK SHAFT | 1 | $13.73 | |
| 3 | 2602-912 | SPROCKET,DRIVE-9T-2.86P EXV | 1 | $69.95 | |
| 5 | 1702-206 | R/B 1702-502 | 1 | $24.95 | |
| 7 | 2602-233 | SNAP RING(CLR-175) | 1 | $2.19 | |
| 8 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 9 | 2602-486 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $425.95 | |
| 10 | 2602-411 | SEAL,CROSSOVER | 1 | $3.44 | |
| 11 | 2602-198 | BEARING (6009-2RSFP-C3) | 1 | $24.77 | |
| 12 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 13 | 2602-410 | KIT,PISTONS/SEALS | 1 | $75.95 | |
| 14 | 1702-245 | PAD SET,BRAKE | 1 | $114.95 | |
| 16 | 2602-408 | FITTING,BLEEDER | 1 | $5.65 | |
| 17 | 2602-412 | BOLT,BRAKE CALIPER | 1 | $4.68 | |
| 18 | 2602-249 | DISK,BRAKE-FORGED-34T SPLINED-BOTTOM | 1 | $231.95 | |
| 19 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 20 | 8413-041 | SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353 | 1 | $3.16 | |
| 22 | 2602-781 | SHAFT,DRIVEN-3SP-WIDE | 1 | $286.95 | |
| 24 | 2602-524 | BEARING,30 X 62 X 16-6206 2RLD-C3 | 1 | $13.73 | |
| 25 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 26 | 8476-826 | SCREW,MACH-TSTRH M8X1.25X25 Z&Y W/2353 | 1 | $5.65 | |
| 28 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 29 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 30 | 1623-640 | CLIP,U-NUT M8 | 1 | $3.02 |
