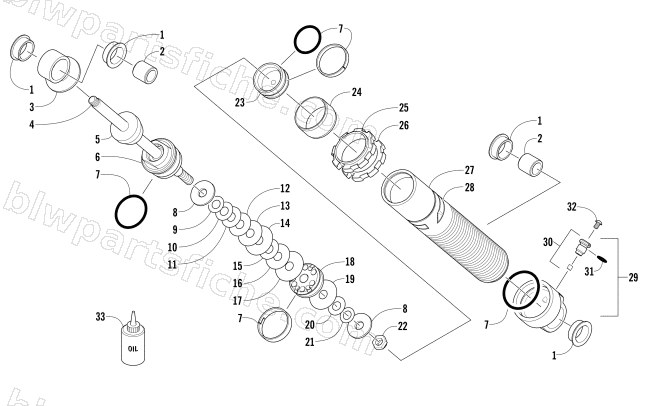

2017 Arctic Cat PANTERA 7000 XT LTD EARLY BUILD — FRONT SUSPENSION SHOCK ABSORBER
2017 PANTERA 7000 XT LTD EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-376 | SHOCK, SKI-406.5 | 1 | $137.95 | |
| 1 | 3604-738 | BUSHING,REAR SHOCK | 1 | $17.87 | |
| 2 | 3604-737 | SLEEVE - 20.65 OD X 14.5 ID X 24.2 | 1 | $12.35 | |
| 3 | 2603-020 | EYELET,SHOCK-SKI-FORGED | 1 | $73.95 | |
| 4 | 3604-760 | SHAFT,CHROME-12.66MM X 204.5MM | 1 | $105.95 | |
| 5 | 3604-740 | BUMPER,SHOCK - NBR70 | 1 | $16.49 | |
| 6 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 7 | 4604-121 | SEAL/BEARING - REBUILD KIT-37MM | 1 | $58.95 | |
| 8 | 3604-789 | WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK | 1 | $3.95 | |
| 9 | 3603-094 | VALVE,SHOCK - 17.78 OD X 0.2 X (9.6ID) | 1 | $6.95 | |
| 10 | 3603-105 | VALVE,SHOCK-20.32 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 11 | 3603-115 | VALVE,SHOCK-22.86 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 12 | 3603-125 | VALVE,SHOCK-25.4 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 13 | 3603-145 | VALVE,SHOCK-27.94 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 14 | 3603-175 | VALVE,SHOCK-31.75 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 15 | 3603-114 | VALVE,SHOCK-22.86 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 16 | 3603-144 | VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 17 | 3603-184 | VALVE,SHOCK-33.02 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 18 | 3604-795 | PISTON, 37 BORE-3.05 ORIFICE | 1 | $41.95 | |
| 19 | 3603-174 | VALVE,SHOCK-31.75 OD X .2 (9.6 ID) | 1 | $6.95 | |
| 20 | 3603-106 | VALVE,SHOCK-20.32 OD X .3 (9.6 ID) | 1 | $6.95 | |
| 21 | 2603-015 | VALVE,SHOCK-13.97 OD X 0.5 X (9.6 ID) | 1 | $6.95 | |
| 22 | 3604-739 | NUT, HEX - 3/8"-24UNF | 1 | $4.95 | |
| 23 | 3604-772 | PISTON.FLOAT-ASSY | 1 | $35.95 | |
| 24 | 3604-773 | GUIDE,SPRING-ALUM BODY | 1 | $32.95 | |
| 25 | 2603-014 | RING,PRELOAD LOCK-SHOULDERED | 1 | $53.95 | |
| 26 | 3604-779 | RING,PRELOAD LOCK | 1 | $45.95 | |
| 27 | 3604-755 | BODY SHOCK-ALUM-37 BORE-208MM | 1 | $125.95 | |
| 28 | 1621-728 | DECAL,WARNING-HIGH PRESSURE SHOCK | 1 | $3.44 | |
| 29 | 2704-257 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 30 | 3604-751 | VALVE,PRESSURE-ASSY | 1 | $124.95 | |
| 32 | 3604-750 | SCREW.MACH-#8-32 X 5mm-SS | 1 | $2.47 | |
| 33 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
