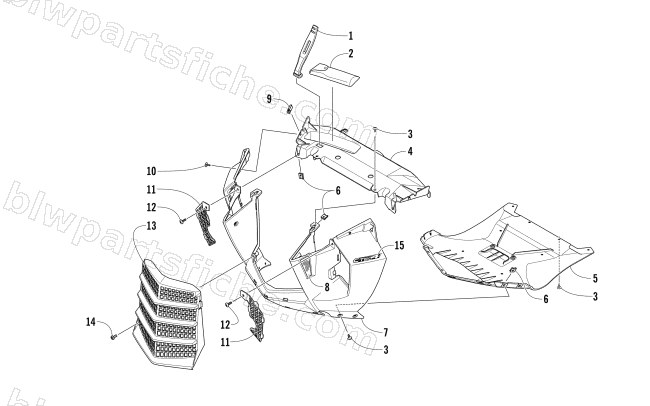

2017 Arctic Cat PANTERA 7000 XT LTD — FRONT FASCIA AND CENTER SKID PLATE ASSEMBLY
2017 PANTERA 7000 XT LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-852 | STRAP,HOLDDOWN-HOOD | 1 | $19.25 | |
| 2 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 4 | 0613-174 | BRKT,MOUNTING-RADIATOR-UPPER | 1 | $38.95 | |
| 5 | 6606-747 | PLATE,SKID-CENTER-MOLD BLK | 1 | $69.95 | |
| 6 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 8 | 1621-390 | DECAL,REFLECTOR-AMBER-RH | 1 | $24.77 | |
| 8 | 1621-391 | DECAL,REFLECTOR-AMBER-LH | 1 | $24.77 | |
| 9 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 10 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 11 | 6606-854 | CLOSE OFF,FRONT BUMPER-RH-BLK | 1 | $48.95 | |
| 11 | 6606-855 | CLOSE OFF,FRONT BUMPER-LH-BLK | 1 | $48.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 6606-790 | GRILLE,RADIATOR-MOLD BLK | 1 | $33.95 | |
| 14 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
