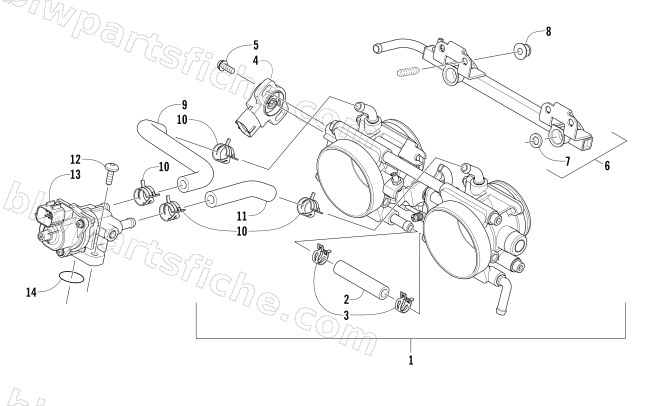

2017 Arctic Cat XF 6000 CROSS COUNTRY LTD ES 137 EARLY BUILD — THROTTLE BODY ASSEMBLY
2017 XF 6000 CROSS COUNTRY LTD ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0910-001 | THROTTLE BODY-47mm | 1 | $377.95 | |
| 2 | 6506-424 | HOSE | 1 | $10.97 | |
| 3 | 6506-338 | CLAMP,HOSE | 1 | $5.78 | |
| 4 | 6506-425 | SENSOR ASSY | 1 | $151.95 | |
| 5 | 6506-075 | SCREW | 1 | $3.16 | |
| 6 | 0910-007 | RAIL, FUEL | 1 | $333.95 | |
| 7 | 0930-036 | O-RING, INJECTOR BASE | 1 | $19.25 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 2670-250 | HOSE, ISC TO MAG T/B | 1 | $12.35 | |
| 10 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 | |
| 11 | 2670-251 | HOSE, ISC TO PTO T/B | 1 | $1.92 | |
| 12 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 13 | 0910-004 | ISC (IDLE SPEED CONTROLLER) | 1 | $333.95 | |
| 14 | 2623-090 | O-RING 13.94mm X 2.62mm CS | 1 | $5.92 |
