2017 Arctic Cat XF 6000 CROSS COUNTRY LTD ES 137 — DRIVEN CLUTCH
2017 XF 6000 CROSS COUNTRY LTD ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

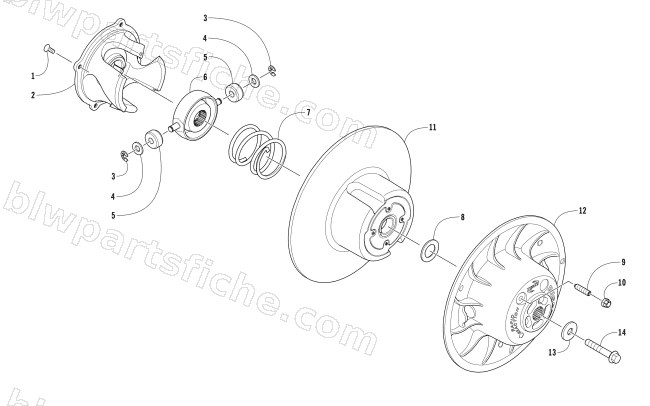

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-365 | CLUTCH,DRIVEN-48S ER/140-200 ASSY | 1 | $735.95 | |
| 1 | 0648-875 | SCREW,MACH-TXSFH-1/4-28X.625 | 1 | $6.47 | |
| 2 | 0648-898 | CAM,DRIVEN-TEAM-48S ER3 | 1 | $203.95 | |
| 3 | 0648-701 | RING,RETAINING-.375(TI) (R/B 0823-440) | 1 | $6.95 | |
| 4 | 0648-700 | WASHER,THRUST(TI) | 1 | $1.37 | |
| 5 | 0648-842 | ROLLER,CLUTCH 1.135 X .550 | 1 | $19.25 | |
| 7 | 0648-857 | SPRING,DRIVEN-140/200 LB | 1 | $58.95 | |
| 8 | 0648-850 | SHIM-23.114 ID X 38.1 OD X 2.29-STEEL | 1 | $4.68 | |
| 8 | 0648-849 | SHIM-23.114 ID X 38.1 OD X 0.76-STEEL | 1 | $2.06 | |
| 8 | 0648-852 | SHIM-23.114 ID X 38.1 OD X 0.38-STEEL | 1 | $5.95 | |
| 9 | 0648-845 | SCREW,SET HEX SKT 5/16 - 24X1.25 | 1 | $13.73 | |
| 10 | 0648-846 | NUT,LOCK HEX 5/16-24 FLEXLOC | 1 | $15.11 | |
| 11 | 0748-776 | SHEAVE,MOVEABLE-ASSY | 1 | $220.95 | |
| 12 | 0748-030 | SHEAVE,STATIONARY-STD BOSS-273-ASSY | 1 | $274.95 | |
| 13 | 2623-120 | WASHER,BELLEVILLE-11.6ID X 31.55OD X 3.6 | 1 | $5.09 | |
| 14 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 |
