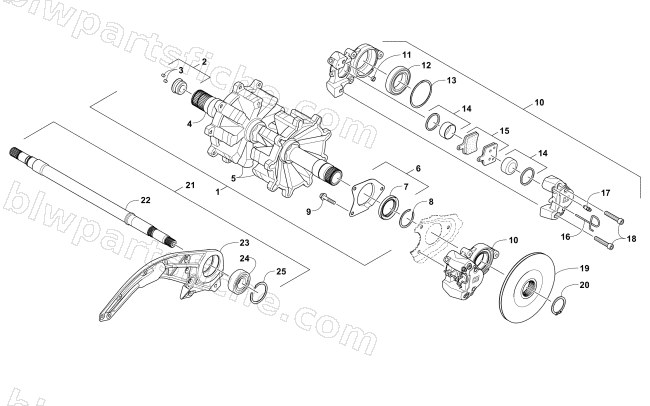

2017 Arctic Cat XF 7000 CROSSTREK — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2017 XF 7000 CROSSTREK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-236 | DRIVE,TRACK-9T-2.86P-EXV-ASSY(8M) | 1 | $508.95 | |
| 2 | 1702-243 | PLUG,DRIVE SHAFT-W/MAGNETS | 1 | $50.95 | |
| 4 | 2602-740 | SHAFT,DRIVE-HEX-45MM BOTTOM BRAKE | 1 | $259.95 | |
| 5 | 2602-912 | SPROCKET,DRIVE-9T-2.86P EXV | 1 | $69.95 | |
| 6 | 1702-206 | R/B 1702-502 | 1 | $24.95 | |
| 8 | 2602-233 | SNAP RING(CLR-175) | 1 | $2.19 | |
| 9 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 10 | 2602-486 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $425.95 | |
| 11 | 2602-411 | SEAL,CROSSOVER | 1 | $3.44 | |
| 12 | 2602-198 | BEARING (6009-2RSFP-C3) | 1 | $24.77 | |
| 13 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 14 | 2602-410 | KIT,PISTONS/SEALS | 1 | $75.95 | |
| 15 | 1702-245 | PAD SET,BRAKE | 1 | $114.95 | |
| 17 | 2602-408 | FITTING,BLEEDER | 1 | $5.65 | |
| 18 | 2602-412 | BOLT,BRAKE CALIPER | 1 | $4.68 | |
| 19 | 2602-249 | DISK,BRAKE-FORGED-34T SPLINED-BOTTOM | 1 | $231.95 | |
| 20 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 24 | 2602-524 | BEARING,30 X 62 X 16-6206 2RLD-C3 | 1 | $13.73 | |
| 25 | 2602-729 | SNAP RING (DKL-62) | 1 | $3.57 |
