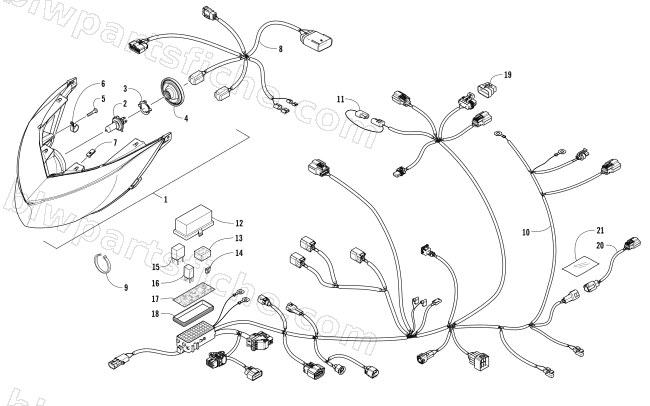

HEADLIGHT AND WIRING ASSEMBLIES
2017 XF 7000 CROSSTREK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0609-956 | BULB,H4 60/55 LL | 1 | $15.11 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 1623-915 | SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B | 1 | $1.50 | |
| 6 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 7 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 8 | 1686-704 | HARNESS,HOOD-Z3 | 1 | $126.95 | |
| 9 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 11 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 12 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 13 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 14 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 14 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 14 | 0430-099 | FUSE,MINI-25A | 1 | $2.95 | |
| 14 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 15 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 16 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 17 | 1621-228 | DECAL,POWER DISTRIBUTION MODULE | 1 | $37.95 | |
| 18 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 19 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 20 | 1686-703 | HARNESS,EXTENSION-TAILLIGHT-1640MM | 1 | $53.95 | |
| 21 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 |
