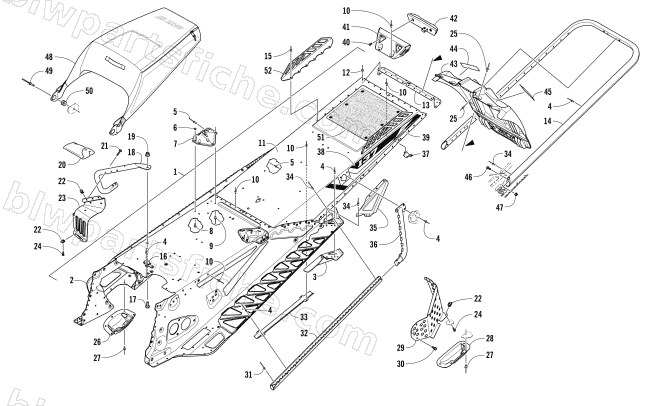

2017 Arctic Cat XF 8000 CROSS COUNTRY LTD ES 137 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2017 XF 8000 CROSS COUNTRY LTD ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2707-238 | TUNNEL,FRONT-XF137-S/P ASSY-PTD BLK | 1 | $718.95 | |
| 3 | 2707-244 | BRKT,REAR SUSP-OUTER-RH-PTD BLK | 1 | $26.95 | |
| 3 | 2707-245 | BRKT,REAR SUSP-OUTER-LH-PTD BLK | 1 | $26.95 | |
| 4 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 5 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 7 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 12 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 13 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 15 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 16 | 0645-709 | CLIP,BATTERY CABLE | 1 | $5.09 | |
| 17 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 18 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 18 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 0744-087 | KIT,TOOL BAG-2 STROKE-ASSY | 1 | $90.95 | |
| 21 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 24 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 25 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 26 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 2707-044 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $53.95 | |
| 30 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 31 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 32 | 1707-697 | EDGE,RUNNING BOARD-PTD BLK | 1 | $54.95 | |
| 33 | 0630-309 | PROTECTOR,TAILLIGHT HARNESS-141" | 1 | $16.49 | |
| 34 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 35 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 35 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 36 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 36 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 37 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 39 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 40 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 41 | 0730-227 | HOUSING,TAILLIGHT-PTD BLK | 1 | $38.95 | |
| 42 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 43 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 44 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 45 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 46 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 47 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 48 | 6606-600 | SADDLEBAG,REAR | 1 | $234.95 | |
| 49 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 50 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 |
