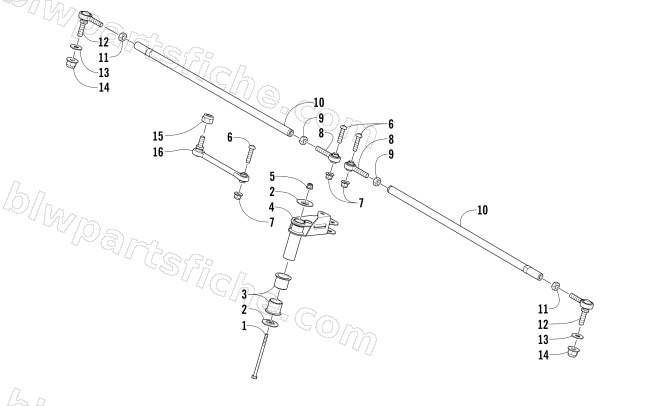

TIE ROD ASSEMBLY
2017 XF 8000 HIGH COUNTRY 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8402-600 | SCREW,CAP-HH M6X1X100 8.8 Z&Y | 1 | $1.50 | |
| 2 | 1623-807 | WASHER,STEPPED-BELLCRANK | 1 | $1.50 | |
| 3 | 1605-161 | BUSHING, PLASTIC (PFI1618-16) | 1 | $8.21 | |
| 4 | 1705-488 | BELLCRANK-PTD BLK | 1 | $43.95 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 2623-026 | SCREW,MACH-TSPH-M8X1.25X37 CL 12.9 MZ | 1 | $1.64 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 1605-032 | ROD END-RH M10X1.25 (8MM BORE) | 1 | $44.95 | |
| 9 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 10 | 1605-033 | TUBE,TIE ROD-SPINDLE-M10X1.25X440mm | 1 | $22.01 | |
| 11 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 12 | 1605-019 | ROD END-LH M10X1.25 THD W/STUD | 1 | $54.95 | |
| 13 | 1623-803 | WASHER,FLAT HARD-M10X20X2.30 Z&Y | 1 | $0.95 | |
| 14 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 15 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 16 | 1605-072 | TIE ROD,DRGLINK-112.6mm-FRGD | 1 | $56.95 |
