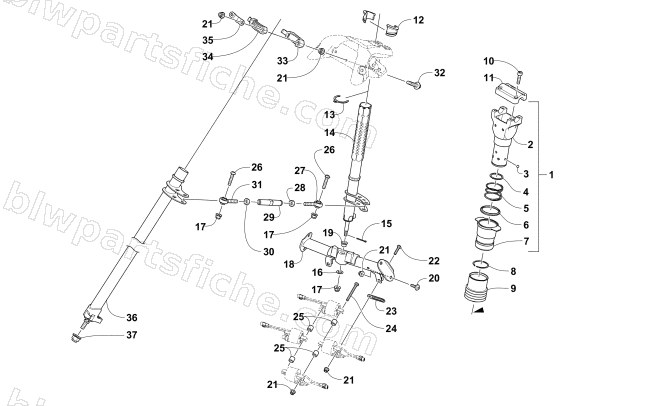

STEERING POST ASSEMBLY
2017 XF 8000 HIGH COUNTRY LTD ES 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1605-162 | BLOCK,ADJUSTING-HANDLEBAR | 1 | $200.95 | |
| 3 | 0605-714 | BEARING,BALL-1/4" | 1 | $1.23 | |
| 4 | 1623-506 | SNAP RING (CL-168) | 1 | $3.30 | |
| 5 | 0605-715 | SPRING,COMPRESSION | 1 | $4.54 | |
| 6 | 0605-852 | SEAL,WIPER-ROD-1.998 X 2.31 X 3/16 | 1 | $5.09 | |
| 7 | 1705-283 | COLLAR,SLIDE-STEERING POST-PTD BLK | 1 | $49.95 | |
| 8 | 1623-507 | SNAP RING (CLR-137) | 1 | $3.57 | |
| 9 | 0605-992 | SLEEVE,PROTECTOR-STEERING POST-MOLDED | 1 | $13.73 | |
| 10 | 1623-753 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 RIE BLK | 1 | $2.06 | |
| 11 | 1705-284 | R/B 1605-175 | 1 | $20.95 | |
| 12 | 1605-054 | BEARING,MTG-STEERING POST-RH | 1 | $1.09 | |
| 12 | 1605-055 | BEARING,MTG-STEERING POST-LH | 1 | $0.60 | |
| 13 | 1605-056 | CLIP,STEERING BEARING | 1 | $3.71 | |
| 15 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 16 | 1605-067 | WASHER,THRUST-STEERING-19X10.3X0.8 | 1 | $0.26 | |
| 17 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 1705-397 | SUPPORT,STEERING-LWR FAB | 1 | $126.95 | |
| 19 | 1605-057 | BEARING,GFM-1012-10 | 1 | $8.21 | |
| 20 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 21 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 22 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 23 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 24 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 | |
| 25 | 1623-041 | SPACER, .325 X .540 X .500 | 1 | $1.92 | |
| 26 | 2623-026 | SCREW,MACH-TSPH-M8X1.25X37 CL 12.9 MZ | 1 | $1.64 | |
| 27 | 1605-032 | ROD END-RH M10X1.25 (8MM BORE) | 1 | $44.95 | |
| 28 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 29 | 1605-053 | TUBE,TIE ROD-POST-M/C-M10X1.25X87MM | 1 | $12.35 | |
| 30 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 31 | 1605-051 | ROD END-LH M10X1.25 (8MM BORE) | 1 | $27.95 | |
| 32 | 2623-079 | SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z&Y | 1 | $1.78 | |
| 33 | 1605-128 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.57 | |
| 34 | 1605-127 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 35 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 36 | 1705-524 | POST,STEERING-SECONDARY-PTD BLK | 1 | $167.95 |
