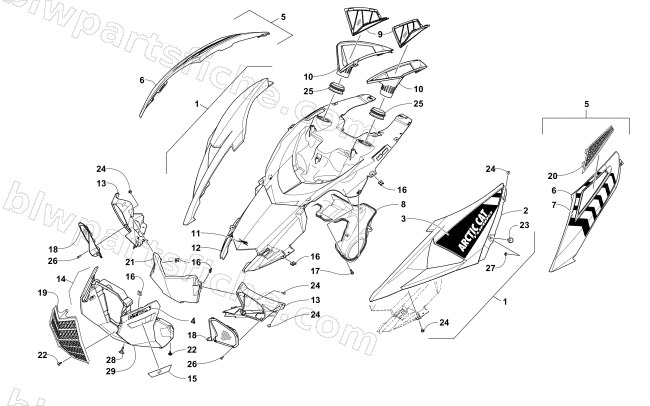

2017 Arctic Cat XF 9000 CROSS COUNTRY 137 — HOOD ASSEMBLY
2017 XF 9000 CROSS COUNTRY 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 11 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 16 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 17 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 23 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 25 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 27 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 28 | 1423-060 | SCREW,SHOULDER TSTRH M6X1.0X25 RIE BL | 1 | $5.51 |
