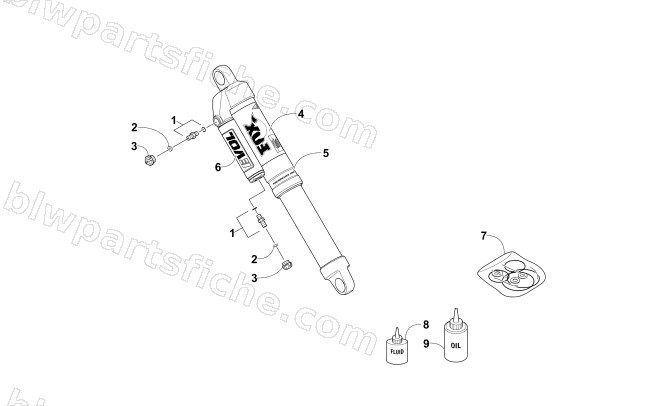

2017 Arctic Cat XF 9000 HIGH COUNTRY LTD 153 1.7 — FRONT SUSPENSION SHOCK ABSORBER
2017 XF 9000 HIGH COUNTRY LTD 153 1.7
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-536 | SHOCK,SKI-FLOAT 3 EVOL (40") | 1 | $746.95 | |
| 1 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 2 | 2603-965 | SEAL,CAP-EVOL AIR VALVE-.296"ODX.125"ID | 1 | $1.64 | |
| 3 | 3603-367 | CAP,VALVE-EVOL-BLACK | 1 | $3.99 | |
| 4 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 5 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 6 | 3603-373 | DECAL,FLOAT X EVOL | 1 | $20.63 | |
| 8 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 9 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
