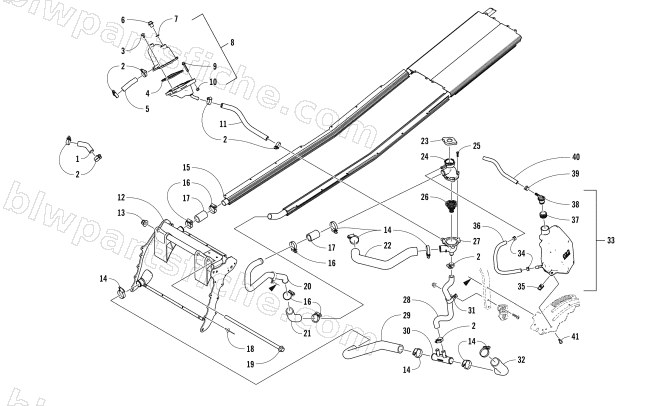

2017 Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 — COOLING ASSEMBLY
2017 XF 9000 HIGH COUNTRY LTD 153 2.2
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0613-140 | HOSE,COOLANT BYPASS-HEAT EXCH | 1 | $3.57 | |
| 2 | 2623-062 | CLAMP,HOSE-12/20 (NORMA) | 1 | $3.02 | |
| 3 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 4 | 0613-266 | SEAL,VAPOR TANK | 1 | $4.54 | |
| 6 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 7 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 8 | 0713-231 | TANK,COOLANT-VAPOR ASSY | 1 | $154.95 | |
| 9 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 13 | 8427-202 | NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z&Y | 1 | $1.23 | |
| 14 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 16 | 2623-038 | CLAMP,HOSE-20/32 (NORMA) | 1 | $3.44 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 23 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 25 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 26 | 0613-078 | THERMOSTAT-71 | 1 | $66.95 | |
| 31 | 0423-833 | CLAMP,TUBE CLIP-3/4" | 1 | $5.51 | |
| 33 | 0713-174 | TANK,COOLANT-OVERFLOW-ASSY | 1 | $78.95 | |
| 34 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 35 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 36 | 0610-970 | HOSE,COOLANT-5/16X.510-25FT | 1 | $69.95 | |
| 37 | 0613-167 | STOPPER,COOLANT TANK | 1 | $4.26 | |
| 38 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 39 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 40 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 41 | 2623-059 | SCREW,MACH-TSPNH M6X1X16 MPT Z&Y-W/2353 | 1 | $1.78 |
