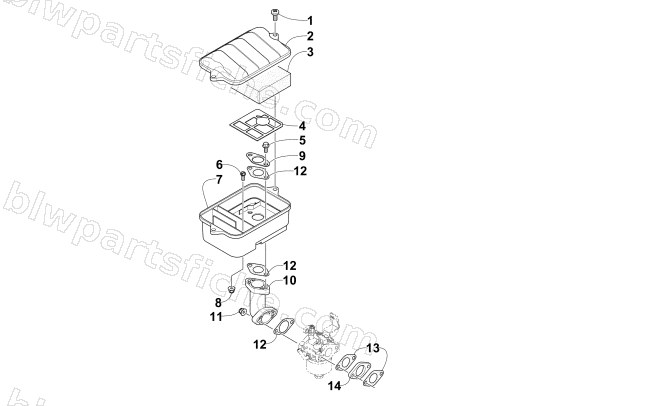

AIR CLEANER ASSEMBLY
2017 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-094 | SCREW, SELF-TAPPING | 1 | $3.85 | |
| 2 | 3020-055 | COVER, AIR CLEANER | 1 | $26.95 | |
| 3 | 3020-056 | FILTER, AIR CLEANER | 1 | $27.95 | |
| 4 | 3020-057 | PLATE, FILTER | 1 | $24.77 | |
| 5 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 6 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 7 | 3020-054 | CASE, AIR CLEANER | 1 | $77.95 | |
| 8 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 3020-058 | PLATE, MOUNTING - AIR CLEANER | 1 | $17.87 | |
| 10 | 2670-110 | INTAKE, TUBE | 1 | $20.63 | |
| 11 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 12 | 3020-053 | GASKET | 1 | $3.49 | |
| 13 | 3020-021 | GASKET, INTAKE | 1 | $3.95 | |
| 14 | 3020-022 | INSULATOR, CABURETOR | 1 | $12.35 |
