Home Snowmobile 2017 ZR 120 DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES

2017 ZR 120

Scroll / pinch to zoom · drag to pan · double-click resets

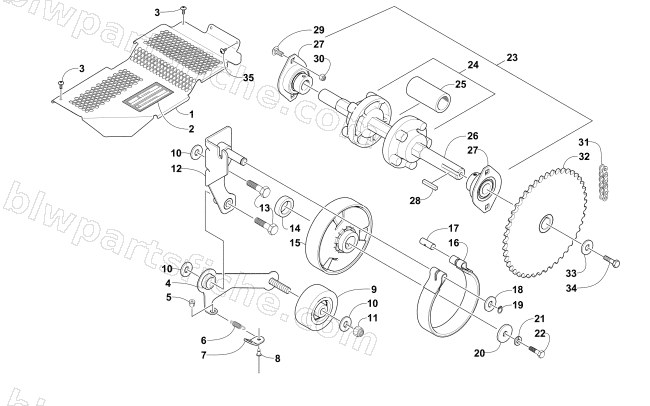

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES diagram
# Part No. Description Qty Price
1 1712-778 SHIELD,CLUTCH/BRAKE/MUFFLER-PTD BLK 1 $27.29
2 3611-754 DECAL, WARNING,GUARD 1 $3.44
3 0623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP 1 $0.45
4 1702-237 TENSIONER,CHAIN-PTD E-CT BLK 1 $33.95
5 0623-868 BUSHING, SNAP 1 $1.09
6 1612-178 SPRING, EXHAUST STRAP 1 $3.85
7 2606-021 TAB, SPRING,RETAINER 1 $5.09
8 8060-484 RIVET, BLIND-DH SS53 ZINC 1 $0.40
9 1602-065 ROLLER, CHAIN,TIGHTENER 1 $86.95
10 8050-247 WASHER,FLAT- 5/16 X .688 X .065 Z&Y 1 $0.68
11 8041-426 NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y 1 $0.40
12 0702-360 BRACKET,BRAKE-PTD BLK 1 $57.95
13 1623-548 SCREW, CAP-HH 5/16-24 x 1.50 W/2353 1 $2.47
14 1602-026 SPACER,CLUTCH-INNER 1 $15.11
16 1602-021 BAND,BRAKE 1 $73.95
17 1602-049 PIN,RETAINER-BRAKE CABLE 1 $13.73
18 8050-277 WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y 1 $0.26
19 0623-821 SNAP RING,EXTL-3/8 DIA 1 $0.95
20 0123-260 WSHR,.343X1 1/8X.120TH Z&Y 1 $1.50
21 8051-242 WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y 1 $1.64
22 8004-132 SCREW,CAP-HH 5/16-24 X1.00 G5 Z&Y 1 $0.95
23 0728-167 TRACK DRIVE ASSY-120 1 $266.95
24 1602-117 SPROCKET, TRACK DRIVE 1 $32.95
25 1602-148 R/B 3602-236 1 $21.95
26 1602-850 SHAFT, DRIVE SPROCKET-F 120 1 $77.95
27 1602-992 BEARING, DRIVE SPROCKET-3/4" 1 $79.95
28 0623-823 KEY,3/16X3/16X.90 1 $2.47
29 8011-130 BOLT,CRG 5/16-18X.75 GR1 Z&Y 1 $1.09
30 8047-426 NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y 1 $0.68
31 2602-333 CHAIN, ROLLER - DRIVE 1 $39.95
32 2602-546 SPROCKET,CHAIN-TRACK DRIVE-45T 1 $129.95
34 8002-131 SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y 1 $0.95
