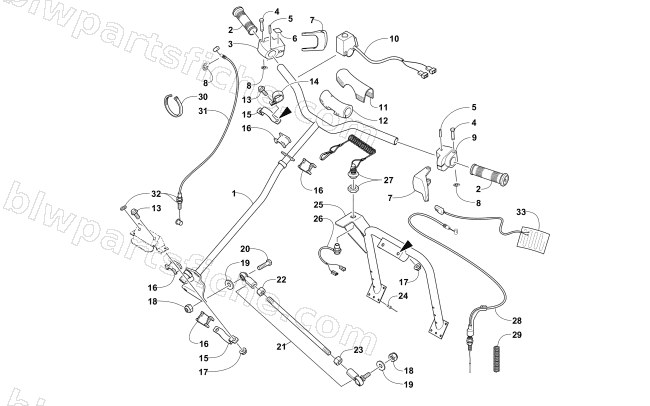

2017 Arctic Cat ZR 120 — STEERING POST AND TIE ROD ASSEMBLY
2017 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-313 | COLUMN, STEERING-PTD BLK-120 | 1 | $110.95 | |
| 3 | 0302-165 | HOUSING,THROTTLE CONTROL | 1 | $23.39 | |
| 4 | 1623-828 | PIN, 1/4D X 1 5/8 | 1 | $12.35 | |
| 5 | 8070-318 | PIN,SPRING-3/16 X 1-1/2 SLOTTED P&O | 1 | $0.95 | |
| 6 | 0611-022 | DECAL,SWITCH-EMERGENCY STOP | 1 | $3.44 | |
| 7 | 0109-609 | LEVER,CONTROL | 1 | $20.63 | |
| 8 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 9 | 0302-147 | HOUSING,BRAKE CONTROL | 1 | $20.63 | |
| 10 | 0609-007 | SWITCH,STOP-ENGINE | 1 | $54.95 | |
| 11 | 1705-444 | COVER,HANDLEBAR PAD-BLK | 1 | $39.95 | |
| 12 | 1605-107 | PAD,HANDLEBAR | 1 | $17.87 | |
| 13 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 14 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 15 | 0705-896 | BRKT,STEERING SUPPORT-PTD BLK | 1 | $16.49 | |
| 16 | 0605-444 | BEARING,STEERING | 1 | $5.09 | |
| 17 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 18 | 1623-423 | NUT, FLEX-LOC 5/16-24 UNF Z & Y | 1 | $3.85 | |
| 19 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 20 | 8004-135 | SCREW,CAP-HH 5/16-24 X1.50 G5 Z&Y | 1 | $1.09 | |
| 21 | 1703-853 | TIE ROD ASSY- 06 F 120 | 1 | $115.95 | |
| 22 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 23 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 24 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 25 | 1707-444 | SUPPORT,STEERING-PTD BLK | 1 | $71.95 | |
| 26 | 0630-138 | SWITCH, TETHER | 1 | $74.95 | |
| 27 | 0630-139 | CORD,TETHER SWITCH | 1 | $51.95 | |
| 28 | 0687-229 | CABLE,BRAKE | 1 | $57.95 | |
| 29 | 1602-100 | SPRING, BRAKE RETURN | 1 | $12.35 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 0687-231 | CABLE,THROTTLE(120) | 1 | $46.95 | |
| 32 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
