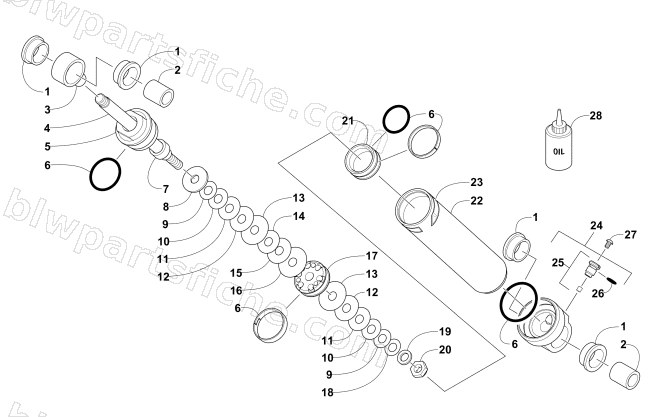

2017 Arctic Cat ZR 3000 LXR 129 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2017 ZR 3000 LXR 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-680 | SHOCK, REAR-355.2 | 1 | $137.95 | |
| 1 | 3604-738 | BUSHING,REAR SHOCK | 1 | $17.87 | |
| 2 | 3604-737 | SLEEVE - 20.65 OD X 14.5 ID X 24.2 | 1 | $12.35 | |
| 3 | 3604-796 | EYELET,REAR ARM-FORGED | 1 | $89.95 | |
| 4 | 3604-776 | SHAFT,CHROME-12.66mm X 186.7mm | 1 | $154.95 | |
| 5 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 6 | 4604-121 | SEAL/BEARING - REBUILD KIT-37MM | 1 | $58.95 | |
| 7 | 3604-956 | SPACER, SHAFT - 13.5 ID X 9.5 WIDE | 1 | $2.47 | |
| 8 | 3604-789 | WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK | 1 | $3.95 | |
| 9 | 3603-105 | VALVE,SHOCK-20.32 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 10 | 3603-115 | VALVE,SHOCK-22.86 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 11 | 3603-125 | VALVE,SHOCK-25.4 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 12 | 3603-145 | VALVE,SHOCK-27.94 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 13 | 3603-175 | VALVE,SHOCK-31.75 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 14 | 3603-122 | VALVE,SHOCK-25.4 OD X .15 (9.6ID) | 1 | $6.95 | |
| 15 | 3603-144 | VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 16 | 3603-186 | VALVE,SHOCK-33.02 OD X 0.3 (9.6 ID) | 1 | $6.95 | |
| 17 | 2603-018 | PISTON, 37 BORE-1.40 ORIFICE | 1 | $69.95 | |
| 18 | 3603-095 | VALVE,SHOCK-17.78 OD X .25 (9.60 ID) | 1 | $5.95 | |
| 19 | 3604-775 | WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID) | 1 | $3.95 | |
| 20 | 3604-739 | NUT, HEX - 3/8"-24UNF | 1 | $4.95 | |
| 21 | 3604-772 | PISTON.FLOAT-ASSY | 1 | $35.95 | |
| 22 | 3604-759 | BODY,SHOCK-ALUM-37.20 BORE- 184mm | 1 | $171.95 | |
| 23 | 1621-728 | DECAL,WARNING-HIGH PRESSURE SHOCK | 1 | $3.44 | |
| 24 | 2704-257 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 25 | 3604-751 | VALVE,PRESSURE-ASSY | 1 | $124.95 | |
| 27 | 3604-750 | SCREW.MACH-#8-32 X 5mm-SS | 1 | $2.47 | |
| 28 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
