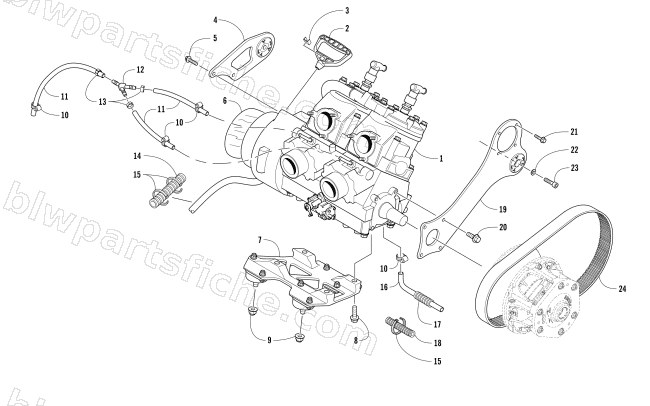

2017 Arctic Cat ZR 4000 LXR 129 — ENGINE AND RELATED PARTS
2017 ZR 4000 LXR 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0762-582 | LONG BLOCK,ENGINE-500AA | 1 | $2,656.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 0708-632 | PLATE,MTG-MAG FABR | 1 | $77.95 | |
| 5 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 6 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 8 | 8413-046 | SCREW,CAP-HFH M10X1.25X45 CL10.9 W/2353 | 1 | $6.47 | |
| 9 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 10 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 11 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 12 | 1670-596 | FITTING,Y-5/16 | 1 | $3.44 | |
| 13 | 0610-581 | CLAMP, HOSE-14.5MM TO 17.0MM | 1 | $2.61 | |
| 14 | 0619-994 | LOOM,PROTECTIVE-3/4 ID-6"-CTL | 1 | $1.64 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0610-699 | HOSE,THROTTLE BODY PTO/WATER PUMP(13.75) | 1 | $24.77 | |
| 17 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 18 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 19 | 0708-622 | BRKT,ENGINE MTG-PTO-ASSY | 1 | $180.95 | |
| 20 | 8409-821 | SCREW,CAP-HFH M8X1.25X20 CL10.9 W/2353 | 1 | $0.68 | |
| 21 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 22 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 23 | 1623-932 | SCREW,CAP-HSH-M8X1.25X30/12.9 W/2353 BZ | 1 | $1.50 | |
| 24 | 0627-083 | BELT,DRIVE DCVS S3C-S 36.8W X 1207OC | 1 | $149.95 |
