2017 Arctic Cat ZR 4000 LXR 129 — SKID PLATE AND SIDE PANEL ASSEMBLY

2017 ZR 4000 LXR 129

Scroll / pinch to zoom · drag to pan · double-click resets

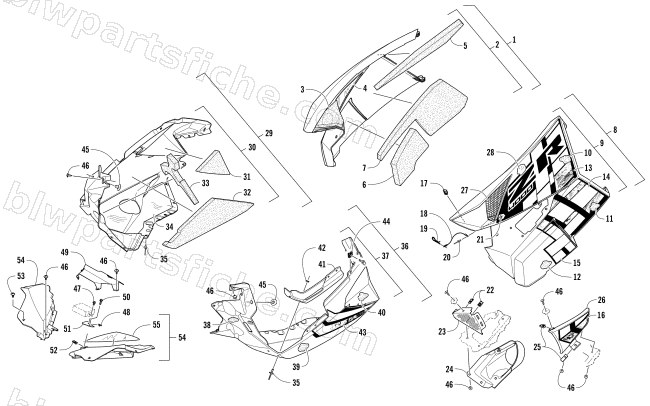

SKID PLATE AND SIDE PANEL ASSEMBLY diagram
# Part No. Description Qty Price
2 3718-180 PANEL,SIDE-RH WITH FOAM-BLK (2 STROKE) 1 $267.95
9 4718-553 PANEL,SIDE-LH-W/FOAM-BLK 1 $267.95
10 0617-629 FOAM,UPPER SIDE PANEL-REAR-LH 1 $16.49
11 0617-635 FOAM,LWR SIDE PANEL-REAR-LH 1 $12.35
12 0617-681 FOAM,LWR SIDE PANEL-FRT-LH 1 $5.65
17 1623-637 CLIP,U-NUT (M5) 1 $2.47
18 0607-447 CABLE,5"-HAIRPIN 1 $5.37
19 0605-283 HAIRPIN,COTTER 1 $1.23
20 8060-486 RIVET, BLIND-DH SS54 ZINC 1 $0.40
21 8050-127 WASHER,FLAT- #8 X .375 X .049 Z&Y 1 $1.37
22 1623-052 NUT,U 1 $0.95
23 6606-925 SCREEN,INTAKE 1 $34.95
24 2602-794 DUCT,INTAKE-INNER 1 $27.95
25 1623-030 NUT,SPEED-#10B U TYPE 1 $0.95
26 2602-793 DUCT,INTAKE-OUTER-BLK 1 $19.25
27 5706-531 SCREEN,SIDE PANEL-UPR LH-PTD BLK 1 $20.63
28 0619-206 TAPE,ALUM FOIL - 6" X 30 FT 1 $7.77
30 4718-520 PLATE,SKID-RH ZR 4000-W/FOAM 1 $167.95
35 8061-708 RIVET, BLIND-LF SS66 BLACK 1 $0.95
37 3718-789 PLATE,SKID-REAR LH W/FOAM 1 $110.95
42 0123-802 WASHER,FLAT .194X.50X.048-Z&Y 1 $0.12
44 2623-005 CLIP,RECEPTACLE-1/4 TURN STUD 1 $2.61
45 6606-592 PIN,RETAINER-BODY PLASTIC 1 $3.57
46 1623-129 R/B 2623-166 1 $0.35
48 0423-577 CLIP,U-NUT M6 1 $0.40
49 6606-942 SHIELD,HEAT-ECU 1 $32.95
50 8408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y 1 $1.37
51 6606-941 BRKT,MTG-ECU 1 $16.49
52 0423-031 NUT,SPEED M6 X 1.0 U-TYPE 1 $0.95
53 0623-784 R/B 2623-163 1 $0.35
54 6606-342 PANEL,FILLER-RH-BLK 1 $19.25
54 3718-303 PANEL,FILLER W/FOIL-LH 1 $19.25
55 6606-405 FOIL,PROTECTIVE-FILLER PANEL-LH 1 $27.95
