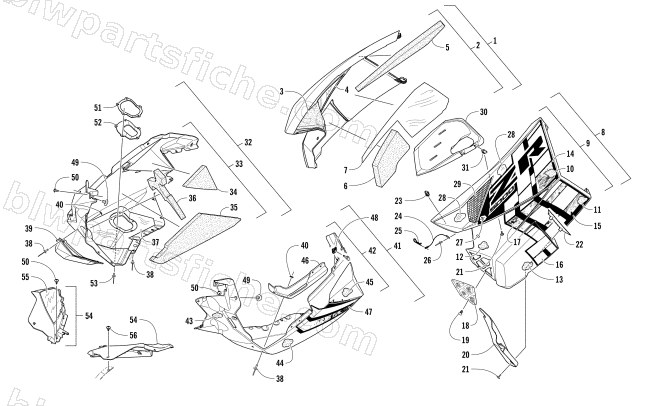

SKID PLATE AND SIDE PANEL ASSEMBLY
2017 ZR 5000 LXR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 9 | 4718-101 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 10 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 11 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 12 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 13 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 18 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 19 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 21 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 22 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 | |
| 23 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 24 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 25 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 26 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 27 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 28 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 29 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 30 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 31 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 33 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 42 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 43 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 44 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 45 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 46 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 48 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 49 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 50 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 51 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 52 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 53 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 54 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 54 | 6606-343 | PANEL,FILLER-LH BLK | 1 | $19.25 | |
| 55 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 56 | 0623-784 | R/B 2623-163 | 1 | $0.35 |
