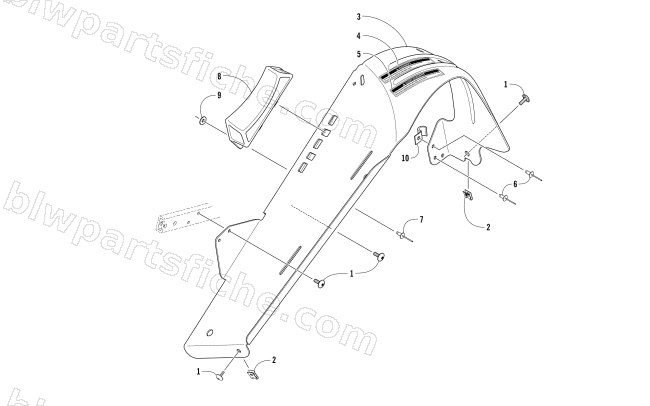

2017 Arctic Cat ZR 6000 EL TIGRE ES 137 EARLY BUILD — BELT GUARD ASSEMBLY
2017 ZR 6000 EL TIGRE ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 2 | 1623-052 | NUT,U | 1 | $0.95 | |
| 3 | 2707-278 | GUARD,CLUTCH-DSI-W/DECALS | 1 | $113.95 | |
| 4 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 5 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 6 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 7 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 8 | 3612-016 | PAD,MOUNTING-EXP CHAMBER | 1 | $30.95 | |
| 9 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 10 | 1623-786 | CLAMP,WIRE-HALF-3/8"-VINYL COATED | 1 | $16.49 |
