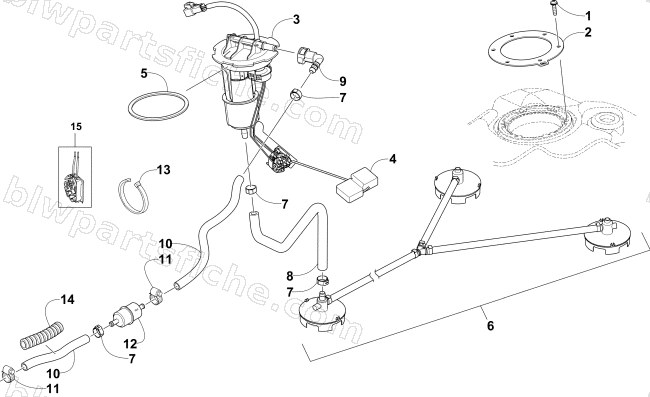

2017 Arctic Cat ZR 6000 EL TIGRE ES 137 EARLY BUILD — FUEL PUMP ASSEMBLY
2017 ZR 6000 EL TIGRE ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 2 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 3 | 2670-358 | PUMP,FUEL-2 STRK 600-SERVICE | 1 | $536.95 | |
| 4 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 6 | 2670-377 | PICKUP,FUEL-3MP | 1 | $145.95 | |
| 7 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 8 | 2670-442 | HOSE,FUEL PUMP/PICKUP | 1 | $76.95 | |
| 9 | 1670-878 | FITTING,QUICK CONNECTOR-3/8X5/16X90 DEG | 1 | $16.49 | |
| 10 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 11 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 12 | 1670-825 | FILTER,FUEL | 1 | $45.95 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 14 | 1619-349 | LOOM-5/8-NYLON-CTL-5' (1619-294) | 1 | $16.49 |
