2017 Arctic Cat ZR 6000 EL TIGRE ES 137 EARLY BUILD — PISTON AND CRANKSHAFT

2017 ZR 6000 EL TIGRE ES 137 EARLY BUILD

Scroll / pinch to zoom · drag or arrow keys to pan · double-click resets

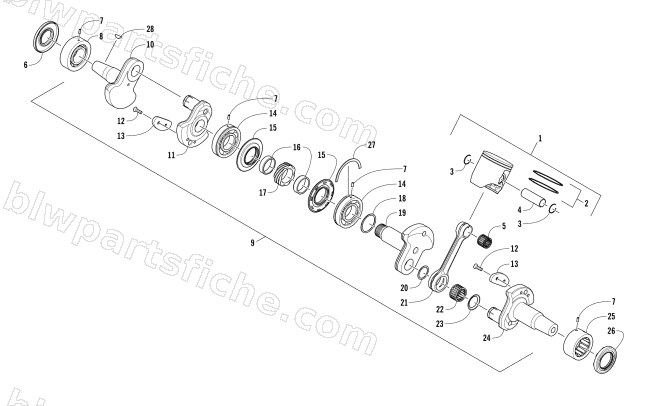

PISTON AND CRANKSHAFT diagram

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.

Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

# Part No. Description Qty Price
1 0905-141 PISTON, 73.8-ASSY GIL G2-SP 1 $253.95
2 0905-158 R/B 0905-211 1 $116.95
4 0905-155 PIN, PISTON 1 $38.95
5 0932-010 BEARING, PISTON PIN 1 $41.95
6 0930-039 SEAL,OIL-MAG (35X75X7) 1 $19.25
7 0929-004 DOWEL, 4 X 10 1 $10.97
8 0932-004 R/B 0932-030 1 $190.95
9 1905-001 CRANKSHAFT,600-RCW ASSY 1 $2,058.95
10 0905-002 WEB,CRANKSHAFT-MAG 1 $251.95
11 0905-004 WEB, CRANKSHAFT-WHEEL 1 $251.95
12 0905-045 SCREW,CRANKSHAFT BALANCER 1 $1.37
13 0905-040 BALANCER,CRANKSHAFT 1 $20.63
14 0932-001 R/B 0932-028 1 $56.95
15 0930-028 SEAL,OIL-MID CRANKSHAFT 1 $37.95
16 0905-047 SPACER,MIDDLE OIL SEAL 1 $76.95
17 0905-041 GEAR,OIL PUMP DRIVE (R10:7) 1 $117.95
18 0905-044 SHIM, CRANKSHAFT- 40X46X1 1 $13.73
19 0905-003 WEB,CRANKSHAFT-MIDDLE 1 $251.95
20 0905-017 SHIM, CONROD-27X33X1 1 $12.35
21 0905-006 CONNECTING ROD, 130 1 $110.95
22 0932-008 BEARING, CONROD, 27X34X20W 1 $180.95
23 0905-016 SHIM, CONROD-SPECIAL 1 $30.95
24 0905-005 WEB, CRANKSHAFT-PTO 1 $382.95
25 0932-009 BEARING, CRANKSHAFT-PTO 1 $125.95
26 0930-051 SEAL,OIL-PTO (40X64X8) 1 $30.95
27 0905-052 C-RING,CRANKSHAFT-75mm 1 $24.77
28 0829-006 WOODRUFF, CB SHAFT 1 $4.13
