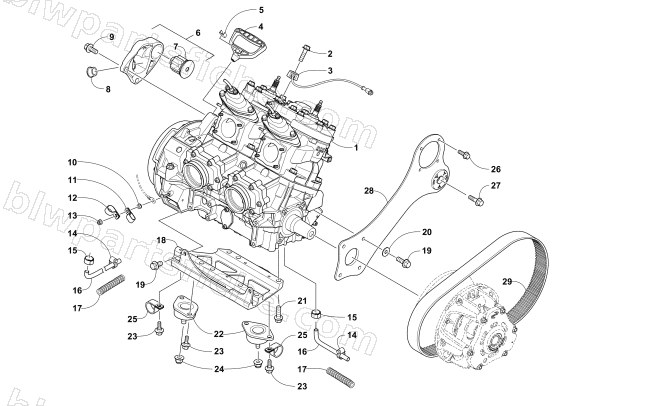

ENGINE AND RELATED PARTS
2017 ZR 6000 LTD ES 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0962-037 | ENGINE,600 DSI MY16-L B ASSY | 1 | $3,044.95 | |
| 1 | 0962-035 | ENGINE,600 DSI MY16 S B ASSY | 1 | $2,284.95 | |
| 2 | 0923-049 | SCREW, CAP-HFH M8X1.25X35 CL8.8 W/2353 | 1 | $12.35 | |
| 3 | 0902-024 | SENSOR, KNOCK | 1 | $69.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 6 | 0708-582 | MOUNT,MAG-FABR | 1 | $42.95 | |
| 7 | 0608-630 | MOUNT,ENGINE | 1 | $42.95 | |
| 8 | 0608-633 | BUSHING,RECOIL ROPE | 1 | $0.68 | |
| 9 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 1623-733 | CLAMP,DOUBLE TUBE-.375 DIA | 1 | $1.78 | |
| 12 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 15 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 17 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 18 | 0708-598 | MOUNT,FRT ENGINE - MACH | 1 | $128.95 | |
| 19 | 8409-821 | SCREW,CAP-HFH M8X1.25X20 CL10.9 W/2353 | 1 | $0.68 | |
| 20 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 21 | 8409-036 | SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353 | 1 | $1.92 | |
| 23 | 1623-944 | SCREW,SHLDER-HFH-M6-1.0X18 CLR.8 Z&Y | 1 | $1.92 | |
| 24 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 25 | 1623-080 | CLAMP, FLEX SHAFT (550/600) | 1 | $1.50 | |
| 26 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 27 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 29 | 0627-083 | BELT,DRIVE DCVS S3C-S 36.8W X 1207OC | 1 | $149.95 |
