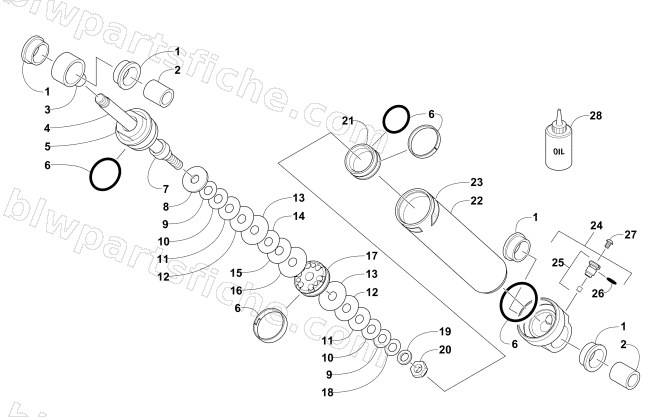

2017 Arctic Cat ZR 6000 LXR ES 129 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2017 ZR 6000 LXR ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-680 | SHOCK, REAR-355.2 | 1 | $137.95 | |
| 1 | 3604-738 | BUSHING,REAR SHOCK | 1 | $17.87 | |
| 2 | 3604-737 | SLEEVE - 20.65 OD X 14.5 ID X 24.2 | 1 | $12.35 | |
| 3 | 3604-796 | EYELET,REAR ARM-FORGED | 1 | $89.95 | |
| 4 | 3604-776 | SHAFT,CHROME-12.66mm X 186.7mm | 1 | $154.95 | |
| 5 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 6 | 4604-121 | SEAL/BEARING - REBUILD KIT-37MM | 1 | $58.95 | |
| 7 | 3604-956 | SPACER, SHAFT - 13.5 ID X 9.5 WIDE | 1 | $2.47 | |
| 8 | 3604-789 | WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK | 1 | $3.95 | |
| 9 | 3603-105 | VALVE,SHOCK-20.32 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 10 | 3603-115 | VALVE,SHOCK-22.86 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 11 | 3603-125 | VALVE,SHOCK-25.4 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 12 | 3603-145 | VALVE,SHOCK-27.94 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 13 | 3603-175 | VALVE,SHOCK-31.75 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 14 | 3603-122 | VALVE,SHOCK-25.4 OD X .15 (9.6ID) | 1 | $6.95 | |
| 15 | 3603-144 | VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID) | 1 | $6.95 | |
| 16 | 3603-186 | VALVE,SHOCK-33.02 OD X 0.3 (9.6 ID) | 1 | $6.95 | |
| 17 | 2603-018 | PISTON, 37 BORE-1.40 ORIFICE | 1 | $69.95 | |
| 18 | 3603-095 | VALVE,SHOCK-17.78 OD X .25 (9.60 ID) | 1 | $5.95 | |
| 19 | 3604-775 | WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID) | 1 | $3.95 | |
| 20 | 3604-739 | NUT, HEX - 3/8"-24UNF | 1 | $4.95 | |
| 21 | 3604-772 | PISTON.FLOAT-ASSY | 1 | $35.95 | |
| 22 | 3604-759 | BODY,SHOCK-ALUM-37.20 BORE- 184mm | 1 | $171.95 | |
| 23 | 1621-728 | DECAL,WARNING-HIGH PRESSURE SHOCK | 1 | $3.44 | |
| 24 | 2704-257 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 25 | 3604-751 | VALVE,PRESSURE-ASSY | 1 | $124.95 | |
| 27 | 3604-750 | SCREW.MACH-#8-32 X 5mm-SS | 1 | $2.47 | |
| 28 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
