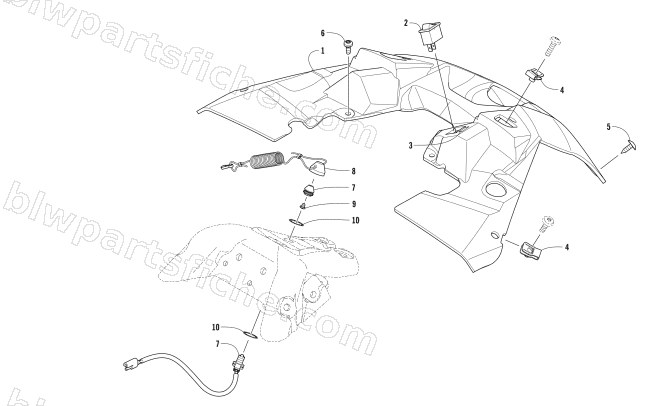

2017 Arctic Cat ZR 6000 R SX — CONSOLE ASSEMBLY
2017 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0609-947 | SWITCH,TOGGLE-HAND/THUMB WARMER | 1 | $29.95 | |
| 3 | 1621-286 | DECAL,TOGGLE-ON/OFF | 1 | $4.07 | |
| 4 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 6 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 7 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 8 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 10 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 |
