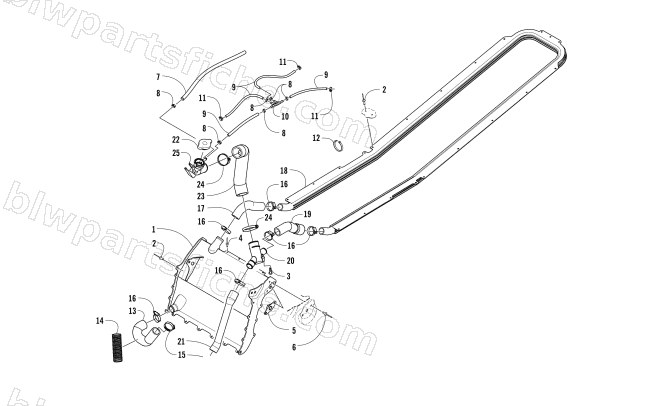

2017 Arctic Cat ZR 6000 R SX — COOLING ASSEMBLY
2017 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 3 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 4 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 5 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 6 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 7 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 7 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 8 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 9 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 10 | 0610-717 | FITTING,COOLANT HOSE-DOUBLE T | 1 | $3.02 | |
| 11 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 15 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 16 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 17 | 0613-122 | HOSE,COOLANT-FRT EXCH/TUNNEL EXCH | 1 | $26.95 | |
| 18 | 0613-113 | EXCHANGER,HEAT-REAR FORMED | 1 | $224.95 | |
| 20 | 0613-228 | NIPPLE,TUNNEL HEAT EXCHANGER | 1 | $13.73 | |
| 22 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 24 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 25 | 0613-030 | NECK,FILLER-COOLANT | 1 | $15.11 |
