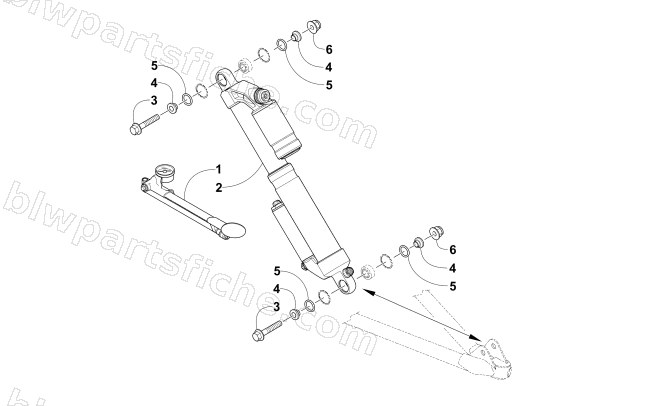

2017 Arctic Cat ZR 6000 R SX — FRONT SHOCK ABSORBER ASSEMBLY
2017 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0641-257 | PUMP,FOX FLOAT EVOL-DUAL GAUGE | 1 | $69.95 | |
| 2 | 3703-348 | SHOCK,SKI-EVOL X-RH (SC) | 1 | $1,263.95 | |
| 2 | 3703-349 | SHOCK,SKI-EVOL X-LH (SC) | 1 | $1,263.95 | |
| 3 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 4 | 3604-709 | SPACER,SPHERICAL BEARING | 1 | $4.40 | |
| 5 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
