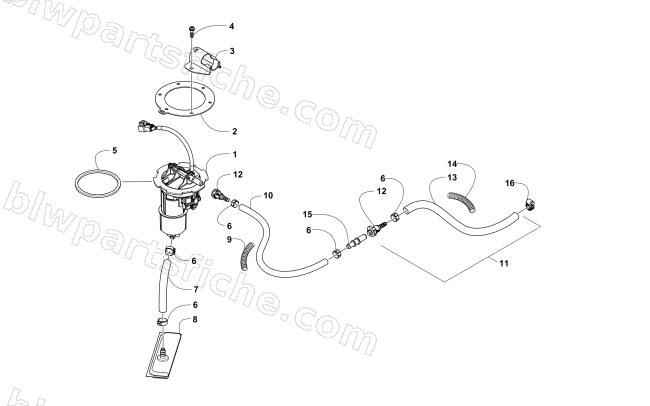

2017 Arctic Cat ZR 6000 R SX — FUEL PUMP ASSEMBLY
2017 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-604 | PUMP,FUEL-SX R | 1 | $990.95 | |
| 2 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 3 | 6606-176 | PROTECTOR,FUEL PUMP | 1 | $77.95 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 6 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 7 | 2670-606 | HOSE,FUEL PUMP/PICKUP | 1 | $124.95 | |
| 8 | 2670-605 | PICKUP,FUEL FILTER | 1 | $39.95 | |
| 10 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 11 | 1770-193 | FITTING,QUICK CONNECT-ASSY | 1 | $39.95 | |
| 12 | 2670-141 | FITTING,QUICK CONNECTOR | 1 | $12.35 | |
| 13 | 0610-691 | R/B 0610-971 | 1 | $61.95 | |
| 14 | 1619-348 | LOOM,5/16" VINYL X 5'- CTL | 1 | $3.44 | |
| 16 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 |
