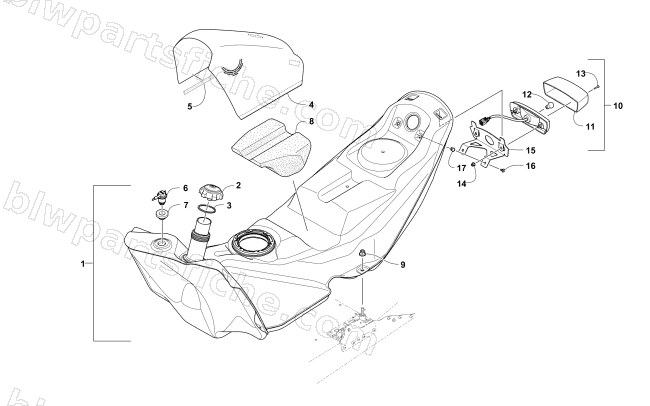

2017 Arctic Cat ZR 6000 R SX — GAS TANK AND TAILLIGHT ASSEMBLY
2017 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-337 | R/B 1770-186 | 1 | $1,169.95 | |
| 2 | 2670-077 | CAP,VENTED-GAS-91 OCTANE | 1 | $54.95 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 5706-322 | COVER,GAS TANK | 1 | $53.95 | |
| 5 | 6990-323 | VELCRO,2IN WIDE X 3FT LOOP-W/PSA | 1 | $45.95 | |
| 6 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 7 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 8 | 0617-671 | FOAM,SEAT-LOWER | 1 | $46.95 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 3303-136 | LIGHT ASSY TAIL **(2) C.2004.04.02 | 1 | $74.95 | |
| 11 | 3303-421 | LENS TAIL LIGHT | 1 | $47.95 | |
| 12 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 13 | 3304-537 | TAPPING SCREW M4X35L | 1 | $2.33 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 0630-293 | HOUSING,TAILLIGHT | 1 | $54.95 | |
| 16 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 17 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 |
