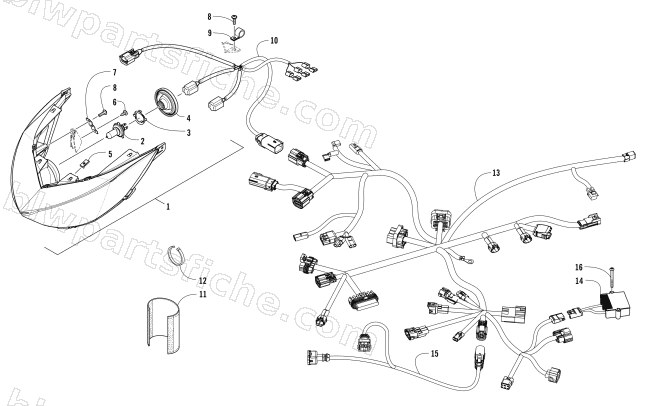

2017 Arctic Cat ZR 6000 R SX — HEADLIGHT AND WIRING ASSEMBLY
2017 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0609-956 | BULB,H4 60/55 LL | 1 | $15.11 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 7 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 7 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 8 | 1623-609 | SCREW,PT THREAD FORMING-K60-2.69X22MM | 1 | $3.16 | |
| 9 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 11 | 5706-700 | WRAP,WIRE HARNESS-11" X 10.50" (hi temp) | 1 | $65.95 | |
| 12 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 14 | 0630-323 | REGULATOR/RECTIFIER | 1 | $183.95 | |
| 15 | 1686-663 | HARNESS,INJECTOR-600R-CWI | 1 | $149.95 | |
| 16 | 8465-551 | SCREW,MACH-TRXBH M5X0.8X50 CL8.8 W/2353 | 1 | $5.51 |
