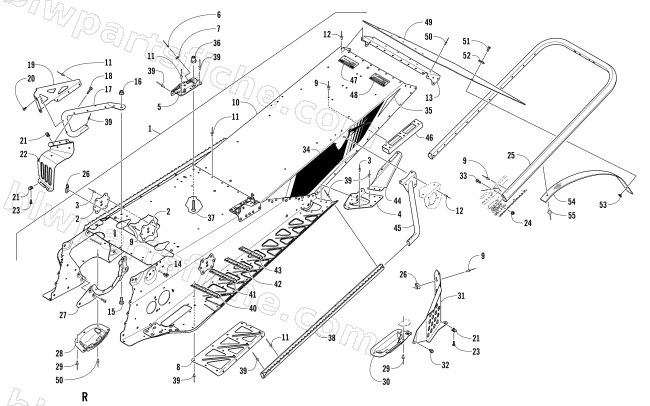

2017 Arctic Cat ZR 6000 R SX — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2017 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3707-120 | TUNNEL,S/P 129 R SX-PTD BLK | 1 | $2,072.95 | |
| 2 | 2707-611 | PLATE,BACKING-PTD BLK | 1 | $30.95 | |
| 3 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 4 | 1607-276 | BRKT,REAR SUSP-OUTER RH | 1 | $24.77 | |
| 4 | 1607-277 | BRKT,REAR SUSP-OUTER LH | 1 | $24.77 | |
| 6 | 8060-284 | RIVET,BLIND-DH SS43 ZINC | 1 | $0.26 | |
| 7 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 8 | 2707-612 | SUPPORT,RUNNING BOARD-RH-PTD BLK | 1 | $109.95 | |
| 8 | 2707-613 | SUPPORT,RUNNING BOARD-LH-PTD BLK | 1 | $109.95 | |
| 9 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 11 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 12 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 13 | 2707-623 | CLOSE OFF,TUNNEL-PTD BLK | 1 | $46.95 | |
| 14 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 15 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 1707-636 | HOOK,TOE-RH PTD BLK | 1 | $93.95 | |
| 17 | 1707-637 | HOOK,TOE-LH PTD BLK | 1 | $93.95 | |
| 18 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 19 | 2707-198 | STIRRUP,TOE STOP-RH PTD BLK | 1 | $58.95 | |
| 19 | 2707-199 | STIRRUP,TOE STOP-LH PTD BLK | 1 | $42.95 | |
| 20 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 21 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 22 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 22 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 23 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 24 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 26 | 6606-586 | BRKT, HOLDDOWN STRAP | 1 | $12.35 | |
| 26 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 27 | 1607-306 | BRACE,SUPPORT-CHAIN CASE-Z&Y | 1 | $37.95 | |
| 28 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 29 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 31 | 2707-258 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $54.95 | |
| 32 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 33 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 35 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 36 | 3604-635 | BUSHING,STOP-REAR ARM-M8X1.25THDS | 1 | $5.51 | |
| 37 | 8468-850 | SCREW,MACH-TSPNH M8X1.25X50 CL8.8 BLK | 1 | $10.97 | |
| 38 | 2707-170 | ROLL,TUNNEL-RH-PTD BLK | 1 | $77.95 | |
| 38 | 2707-171 | ROLL,TUNNEL-LH-PTD BLK | 1 | $77.95 | |
| 39 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 40 | 2707-614 | SUPPORT,RUN BRD-165MM-PTD BLK | 1 | $17.87 | |
| 41 | 2707-615 | SUPPORT,RUN BRD-153MM-PTD BLK | 1 | $17.87 | |
| 42 | 2707-616 | SUPPORT,RUN BRD-144MM-PTD BLK | 1 | $17.87 | |
| 43 | 2707-617 | SUPPORT,RUN BRD-135MM-PTD BLK | 1 | $17.87 | |
| 44 | 2707-618 | GUSSET,RUNNING B0ARD-RH PTD BLK | 1 | $39.95 | |
| 44 | 2707-619 | GUSSET,RUNNING B0ARD-LH PTD BLK | 1 | $39.95 | |
| 45 | 1707-810 | SUPPORT,TUNNEL-RH PTD E-COAT BLK | 1 | $93.95 | |
| 45 | 1707-811 | SUPPORT,TUNNEL-LH PTD E-COAT BLK | 1 | $93.95 | |
| 46 | 5706-547 | PROTECTOR,TUNNEL-MACH | 1 | $108.95 | |
| 47 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 48 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 49 | 6606-623 | SNOWFLAP,SNO CROSS | 1 | $79.95 | |
| 50 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 51 | 8017-607 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 BLK Z | 1 | $3.16 | |
| 52 | 1623-242 | WASHER,BACKING-7MM IDX11/8OD-BLK | 1 | $2.47 | |
| 53 | 1623-608 | NUT,PROPELLAR-1/4-20 X .300"BARREL | 1 | $2.06 | |
| 54 | 3604-157 | STRAP,SNOWFLAP RESTRAINT | 1 | $20.63 | |
| 55 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 |
