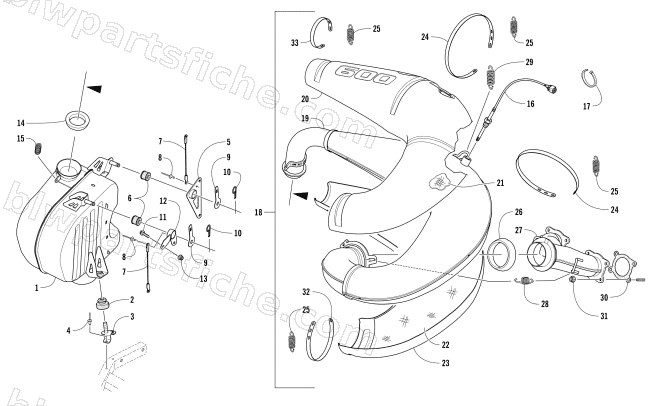

2017 Arctic Cat ZR 6000 R XC — EXHAUST ASSEMBLY
2017 ZR 6000 R XC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1612-873 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $4.26 | |
| 3 | 1712-796 | BRKT,MTG-LWR RES/CHASSIS-PTD BLK | 1 | $22.01 | |
| 4 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 5 | 1712-800 | BRKT,EXH MTG-CHAIN CASE-PTD BLK | 1 | $20.63 | |
| 6 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 7 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 2612-347 | WASHER,RESONATOR-MTG-W/TAB(1.25 OD) | 1 | $3.16 | |
| 10 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 1712-798 | BRKT,EXH MTG-SPAR-PTD BLK | 1 | $30.95 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 15 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 16 | 0630-330 | SENSOR,EXHAUST TEMP-M14 X 1.5 | 1 | $213.95 | |
| 17 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 24 | 2612-786 | BAND,TIE - 430mm MAX | 1 | $3.57 | |
| 25 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 26 | 2612-615 | GASKET,EXHAUST-HEADPIPE | 1 | $32.95 | |
| 27 | 1712-811 | MANIFOLD,EXHAUST-MACH | 1 | $224.95 | |
| 28 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 29 | 2612-949 | SPRING,EXHAUST-2.70" | 1 | $5.51 | |
| 30 | 0930-023 | GASKET,EXHAUST | 1 | $8.21 | |
| 31 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 32 | 3612-296 | BAND,TIE-262MM MAX | 1 | $3.16 | |
| 33 | 2612-784 | BAND,TIE - 180mm MAX | 1 | $2.75 |
